Transaxle Mounting Bracket

WARNING: This page is about a different variant/trim than selected.

Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
Remove the Battery and Battery Tray.
(Refer to Engine Electrical System - "BATTERY ")
Install the jack to the edge of transaxle.
Remove the front wheel guard.
(Refer to Body - "BODY SIDE MOLDING ")

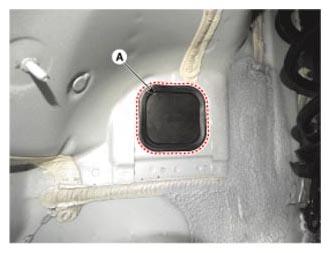

Remove the service cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

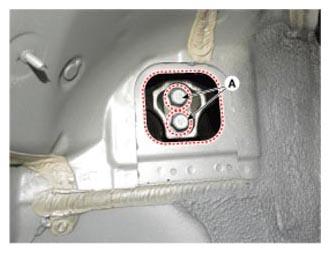

Remove the transaxle mounting bracket bolts (A).
Tightening Torque:

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

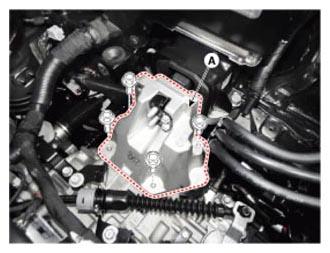

Remove the transaxle mounting support bracket (A).
Tightening Torque:

58.9 ~ 78.5 N.m (6.0 ~ 8.0 kgf.m, 43.4 ~ 57.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

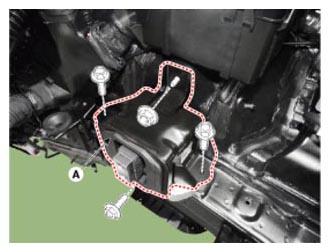

Remove the transaxle mounting bracket (A).
Tightening Torque:

63.7 ~ 83.4 N.m (6.5 ~ 8.5 kgf.m, 47.0 ~ 61.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
