Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

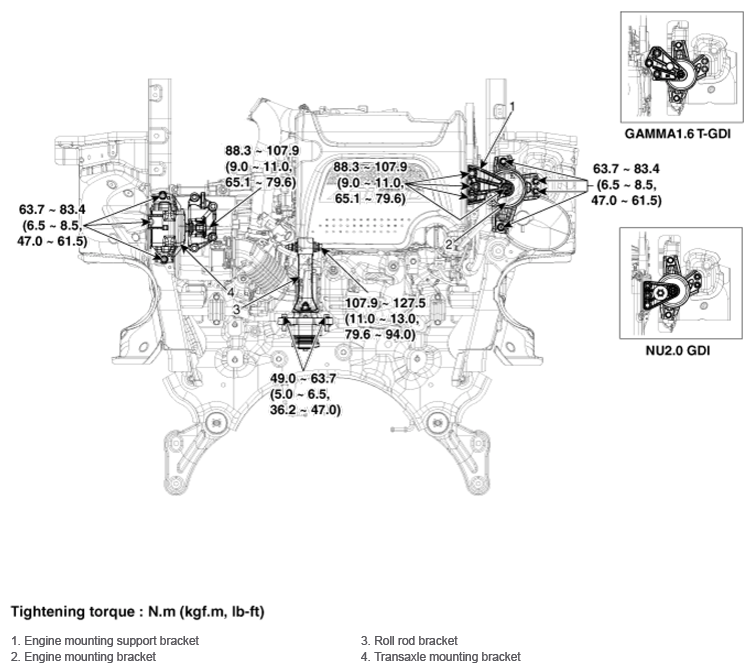

Fig 1: Locating Engine Mounting Components With Torque Specification
G13016569Courtesy of HYUNDAI MOTOR AMERICA
