Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

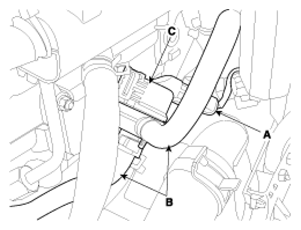

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the purge control solenoid valve connector (A).
  3. Disconnect the vapor hoses (B) from the purge control solenoid valve.
  4. Remove the valve (C) from the surge tank after pulling it.
    G13020992Courtesy of HYUNDAI MOTOR AMERICA
