Repair Procedures: Removal: Notes
WARNING: This page is about a different variant/trim than selected.
[Bank 1/Sensor 1]
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.

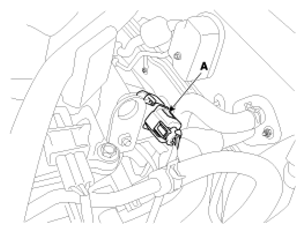

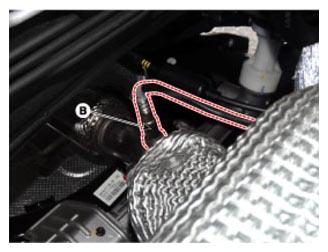

- Disconnect the connector (A), and then remove the sensor (B).
NOTE:
Note that the SST (Part No.: 09392-1Y100 or 09392-2H100) is useful when removing the heated oxygen sensor.
 Courtesy of HYUNDAI MOTOR AMERICA
|
 Courtesy of HYUNDAI MOTOR AMERICA
|
