Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

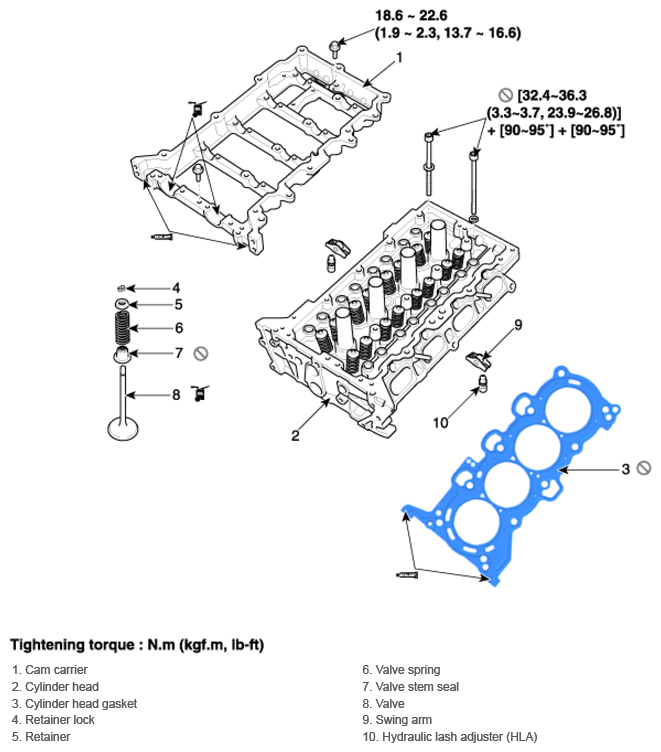

Fig 1: Cylinder Head Components With Torque Specification
G13016683Courtesy of HYUNDAI MOTOR AMERICA
