Repair Procedures: Removal

Information

• Mark all wiring and hoses to avoid disconnection.
• Turn the crankshaft pulley so that the No. 1 piston is at top dead center.
• Timing chain cover removal is not required for this procedure.

1. Remove the cylinder head cover.

   (Refer to Cylinder Head Assembly - "CYLINDER HEAD COVER ")

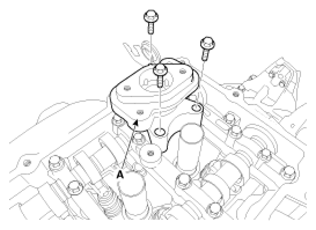

2. Remove the fuel pump adaptor (A).

   Courtesy of HYUNDAI MOTOR AMERICA

3. Set No. 1 cylinder to TDC (Top dead center) on compression stroke.
   1. Turn the crankshaft pulley and align its groove with the timing mark of the timing chain cover.

      Courtesy of HYUNDAI MOTOR AMERICA

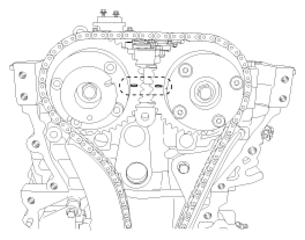

   2. Check that the TDC marks of the intake and exhaust CVVT sprockets are in straight line on the cylinder head surface as displayed in the image. If not, turn the crankshaft by one revolution (360°) more.

      Courtesy of HYUNDAI MOTOR AMERICA

   3. Mark the timing chains corresponding to the timing marks of the CVVT sprockets.

   Courtesy of HYUNDAI MOTOR AMERICA

4. Remove the crankshaft damper pulley.

   (Refer to Timing System - "CRANKSHAFT DAMPER PULLEY ")

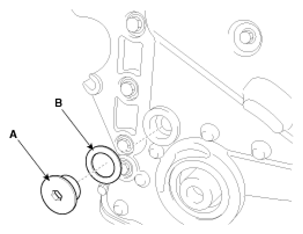

5. Remove the service plug bolt (A) with the gasket (B).

   Courtesy of HYUNDAI MOTOR AMERICA

6. Remove the tensioner arm bolt (A).

   Courtesy of HYUNDAI MOTOR AMERICA

7. Push down the tensioner arm (A).

   Courtesy of HYUNDAI MOTOR AMERICA

8. Remove the camshaft bearing caps.

   Courtesy of HYUNDAI MOTOR AMERICA

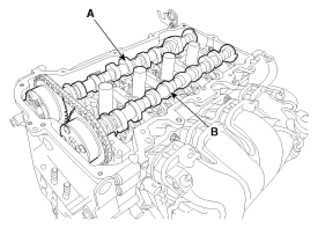

9. Remove the exhaust camshaft (A) first, then intake camshaft (B).

   Courtesy of HYUNDAI MOTOR AMERICA

10. Remove the tensioner arm (A).

    Courtesy of HYUNDAI MOTOR AMERICA

    Information

    • To hold the timing chain, tie it with strap.
11. Remove the CVVT assembly (A) from the camshaft.

    Courtesy of HYUNDAI MOTOR AMERICA

    Information

    • When removing the CVVT assembly bolt, hold the camshaft with a wrench to prevent the camshaft from rotating.
