Connector Assembly Status Test

WARNING: This page is about a different variant/trim than selected.

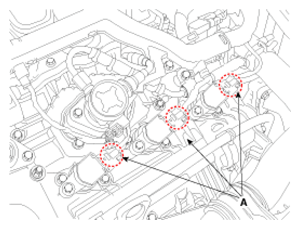

  1. Remove the connector (A) and reinstall it.
    G13016940Courtesy of HYUNDAI MOTOR AMERICA
    G13016941Courtesy of HYUNDAI MOTOR AMERICA

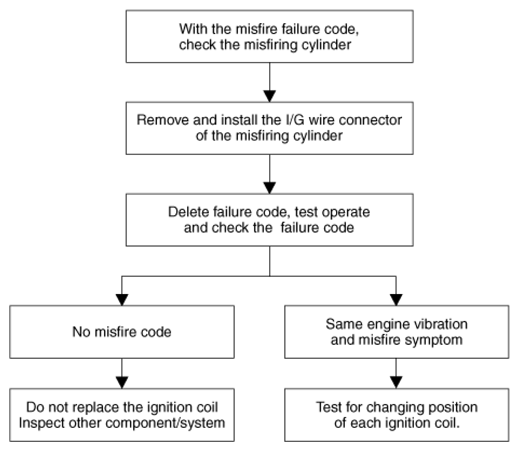

    G13016942Courtesy of HYUNDAI MOTOR AMERICA
