Monitor GDS Data
- Ignition "OFF", connect GDS.

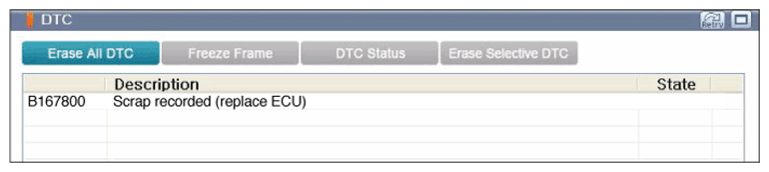

- Ignition "ON" & Engine "OFF", select "Diagnostic Trouble Codes (DTC) " mode.
- Monitor diagnostic trouble code and present of trouble code.
- Using a GDS, clear the DTC.
- Is parameter displayed within specifications?
YES
- When all of airbags are expanded by forcibly using a scrap tool, this DTC is set up. After checking if all of airbags are expanded, replace airbags which have been expanded with new ones.
- DTC caused by deployment of all air bag. Substitute with a SRSCM and check for proper operation. If the problem is corrected, replace SRSCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NOTE: If you strike or spin the SRSCM at the IG "ON" state, the seat-belt pretensioner, Anchor Pretensioner, curtain-airbag or side-airbag could be unfolded and bring on danger. Handle it with care.
