Monitor GDS Data

  1. Ignition "OFF", connect GDS.
  2. Ignition "ON" & Engine "OFF", select "Diagnostic Trouble Codes (DTC)  " mode.
  3. Monitor diagnostic trouble code and present of trouble code.
  4. Using a GDS, clear the DTC.

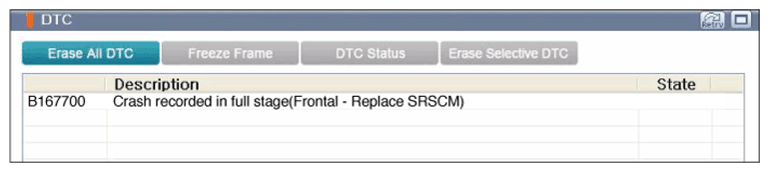

    G13037580Courtesy of HYUNDAI MOTOR AMERICA
  5. Is parameter displayed within specifications?

    YES

    • DTC caused by deployment of front airbag and Side airbag Passenger. Substitute with a SRSCM and check for proper operation. If the problem is corrected, replace SRSCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
