Monitor GDS Data

  1. Ignition switch OFF, connect GDS.
  2. Ignition switch ON and the engine OFF, select "Current Data" mode.

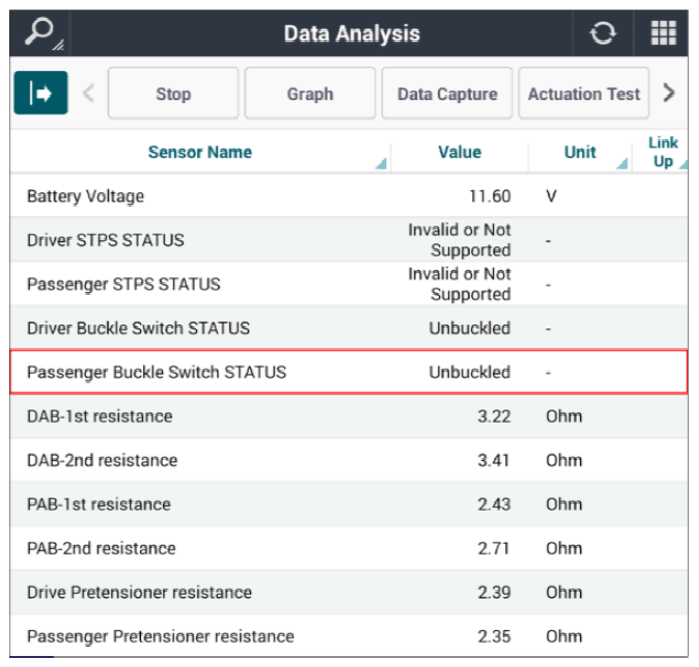

  3. Monitor the "Passenger Buckle Switch status" parameter on the GDS.

    Specification  : Buckle Switch on: Buckled, Buckle Switch off: Unbuckled

    G14538344Courtesy of HYUNDAI MOTOR AMERICA
  4. Is parameter displayed within specifications?

    YES

    • Displaying no DTC or a DTC with a label "H" (historical) shows that the fault is intermittent caused by poor contact of the part's and/or SRSCM's connector. Or, the SRSCM memory was not cleared after repair.
    • Thoroughly check the battery terminal and all connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
    • Repair as necessary, and then go to "VERIFICATION OF VEHICLE REPAIR ".

    NO

    • Go to "W/Harness Inspection" procedure.
