Passenger airbag (PAB)

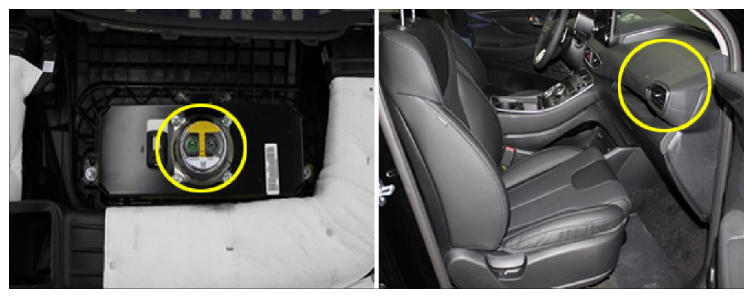

The Passenger Airbag module (hereinafter referred to PAB) located at the passenger side crush pad protects the passenger by reducing the impact of collision.
The PAB is consists of an airbag, a pat cover and an inflator.
Airbag reduces impact of collision by filled up gas.
An Inflator keeps gas and uses it to deploy air bag on collision.
CAUTION:
Never measure the resistance of the PAB directly, Current of measuring the device may cause unexpected air bag deploy.
