S/W Management

WARNING: This page is about a different car, the 2022 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Start-up "ON".
  2. Shift lever P.
  3. Vehicle speed 0 km/h.
  4. Battery normal. (above 10V)
  5. NO DTC.
  1. Connect GDS to "Data Link Connector (DLC)".
  2. Select the "Vehicle S/W Management" about related DTC with GDS.
  3. Select HF EOP operation in S/W Management.
  4. After the final work, go to "Verification of Vehicle Repair" procedure.
 Fig.1 to 4

Fig.1 to 4) HF EOP operation test S/W Management Step.

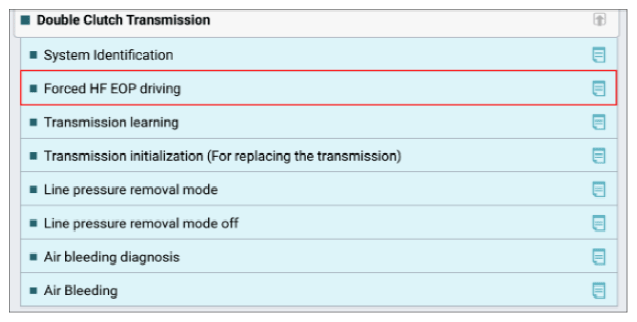

G14543014Courtesy of HYUNDAI MOTOR AMERICA

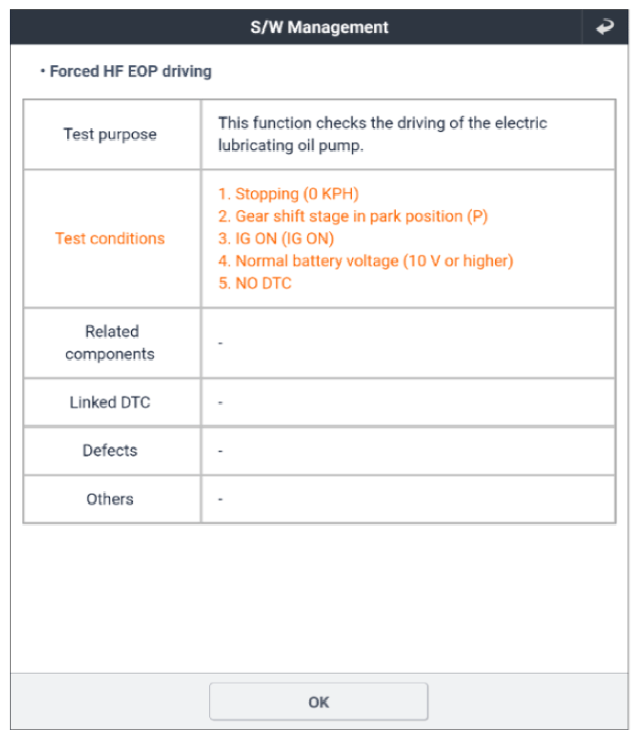

G14543015Courtesy of HYUNDAI MOTOR AMERICA

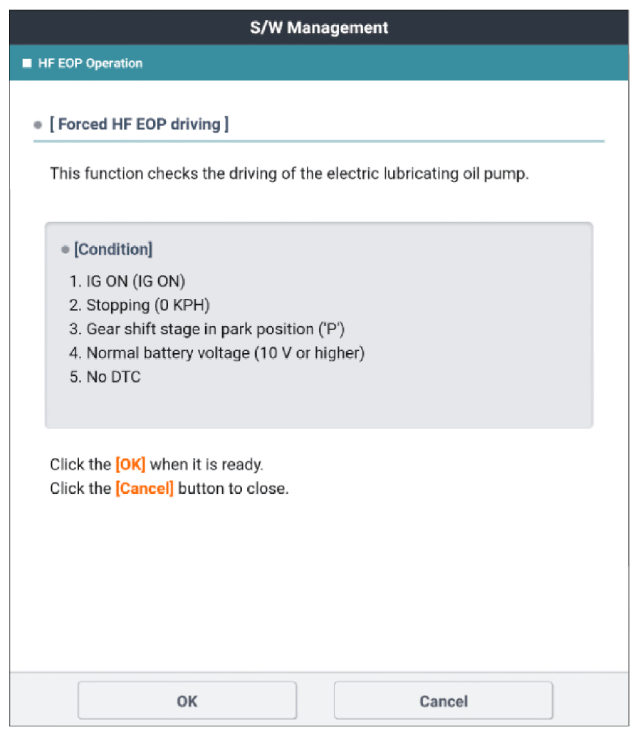

G14543016Courtesy of HYUNDAI MOTOR AMERICA

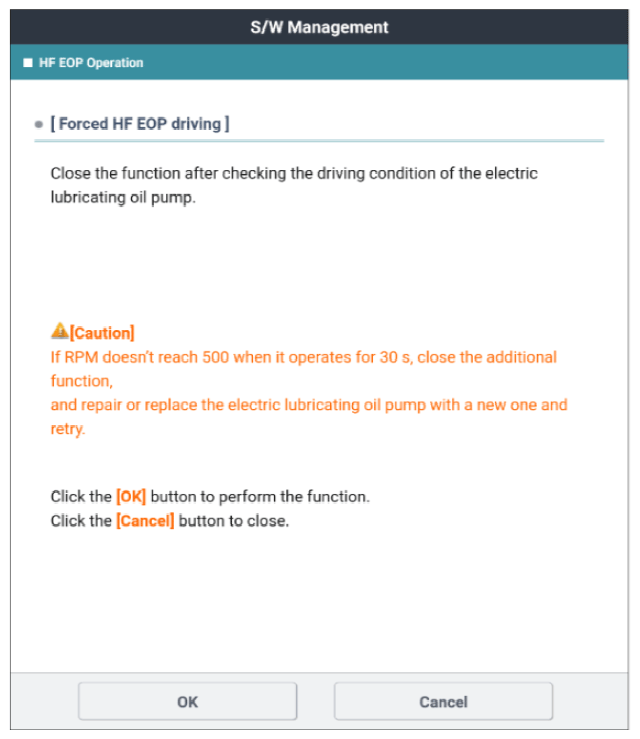

G14543017Courtesy of HYUNDAI MOTOR AMERICA
