Monitor GDS Data

WARNING: This page is about a different car, the 2022 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect GDS to "Data Link Connector (DLC)". Engine "ON". Operate vehicle or system in accordance with enable condition in DTC detecting condition. Monitor "Input speed1, 2", "Shift Lever Switch", "Current Gear" and "Engine RPM" parameter in "Current Data" with GDS.	Fig.1 to 8

Fig.1 to 8) Input shaft speed sensor "1" → "8" ranges.

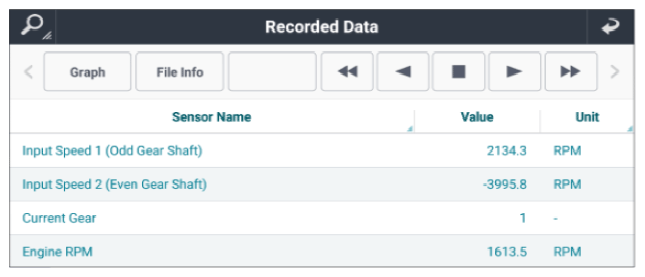

G14541092

Courtesy of HYUNDAI MOTOR AMERICA

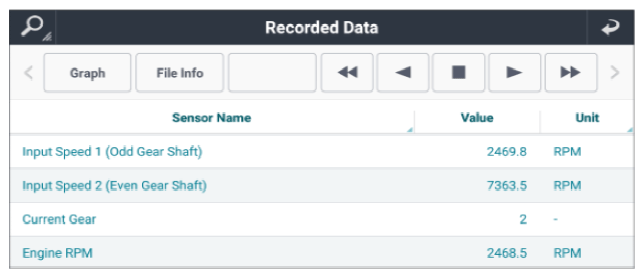

G14541093

Courtesy of HYUNDAI MOTOR AMERICA

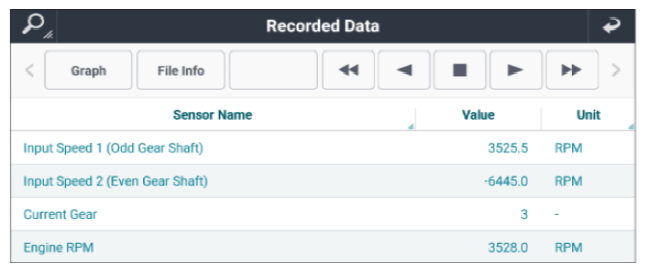

G14541094

Courtesy of HYUNDAI MOTOR AMERICA

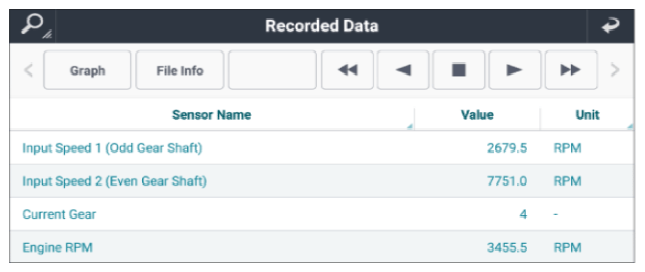

G14541095

Courtesy of HYUNDAI MOTOR AMERICA

G14541096

Courtesy of HYUNDAI MOTOR AMERICA

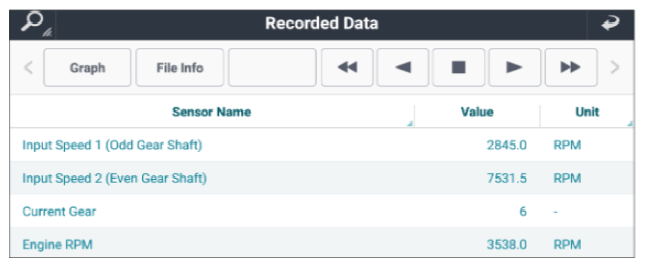

G14541097

Courtesy of HYUNDAI MOTOR AMERICA

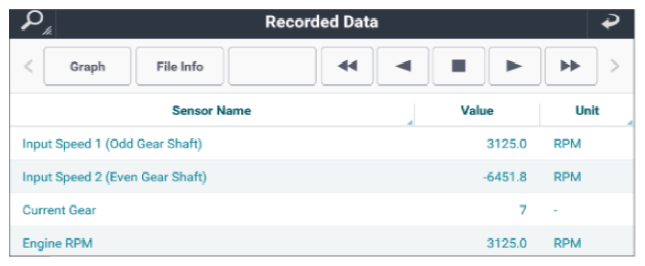

G14541098

Courtesy of HYUNDAI MOTOR AMERICA

G14541099

Courtesy of HYUNDAI MOTOR AMERICA

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

No Good

Go to "WIRING INSPECTION " procedure.
