Monitor GDS Data

WARNING: This page is about a different car, the 2022 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect GDS to "Data Link Connector (DLC)". Refer to "LIFT AND SUPPORT POINTS " and lift vehicle with suitable lift. Operate vehicle or system in accordance with enable condition in DTC detecting condition. Monitor selected parameters shown below in "Current Data" with GDS.	Fig.1

Courtesy of HYUNDAI MOTOR AMERICA

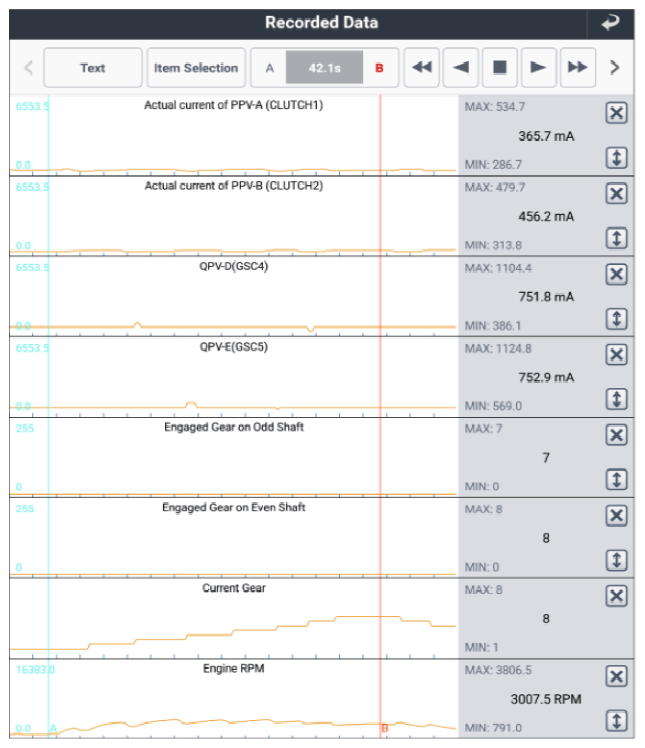

Fig.1) Current data when driving 1st to 8th gear shift.

Good

This fault code may be a temporary failure due to poor contact with wiring. Overall, check connectors for slackness, poor contact, bending, corrosion, contamination, deformation or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

No Good

Re-do the corresponding diagnostic guide.
If the problem continues, replace the DCT assembly then go to "TCU Neutralization" and "Air bleeding" of S/W management and perform the "Verification Of Vehicle Repair" procedure.
