Monitor GDS Data

WARNING: This page is about a different car, the 2022 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect GDS to "Data Link Connector (DLC)". Raise the vehicle on the lift, referring to the maintenance instructions. Operate vehicle or system in accordance with enable condition in DTC detecting condition. Monitor selected parameters shown below in "Current Data" with GDS.	Fig.1

G14540878

Courtesy of HYUNDAI MOTOR AMERICA

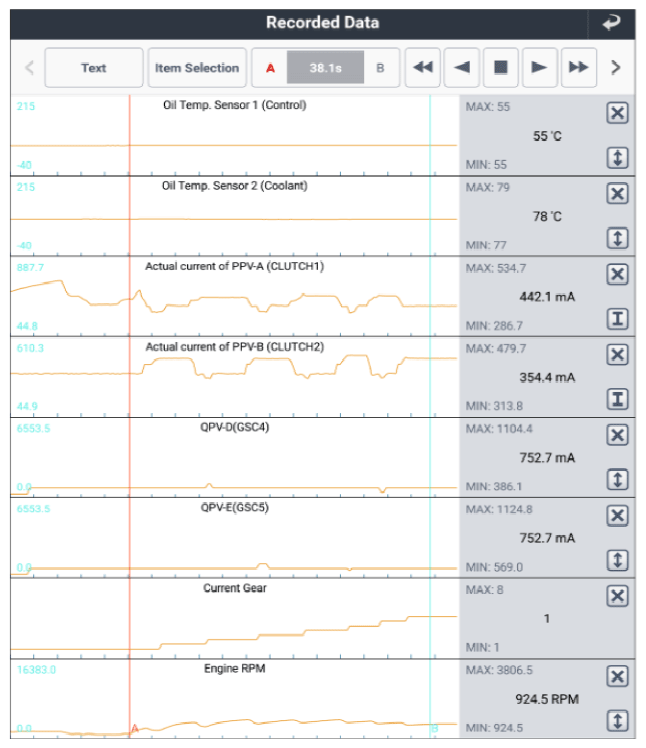

Fig.1) Shift 1st to 8th speeds current data.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

No Good

Go to "WIRING INSPECTION " procedure.
