Components And Components Location: Components

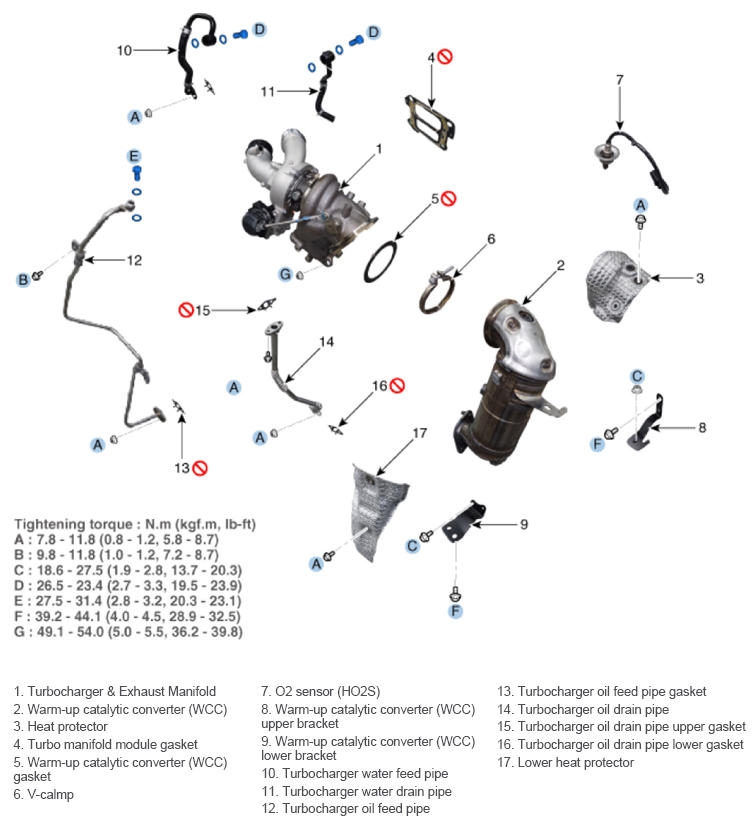

Fig 1: Turbocharger And Exhaust Manifold And Catalytic Converter Components Location With Torque Specification

G14537505

Courtesy of HYUNDAI MOTOR AMERICA
