Home >> Hyundai >> 2021 >> Santa Fe Calligraphy, AWD >> Repair and Diagnosis >> Engine Mechanical >> Blowers, Superchargers & Turbochargers >> Intake And Exhaust System - 2.5T (Except HEV) >> Intake Manifold >> Components And Components Location >> Components

Components And Components Location: Components

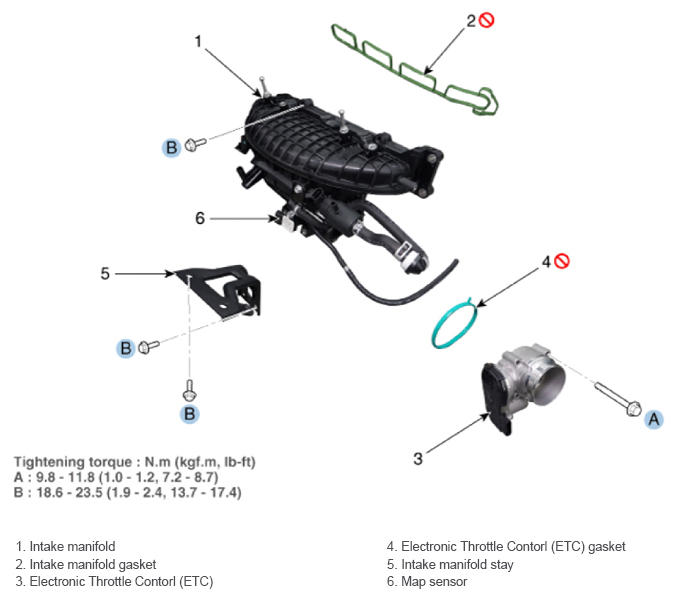

Fig 1: Intake Manifold Components Location With Torque Specification

G14537488

Courtesy of HYUNDAI MOTOR AMERICA
