Air Cleaner Element Replacement

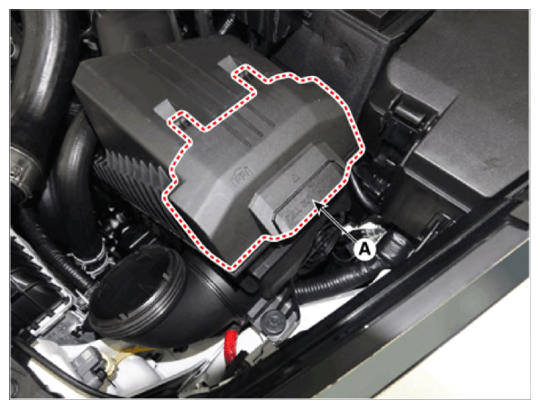

Release the clamp and open the air cleaner element cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

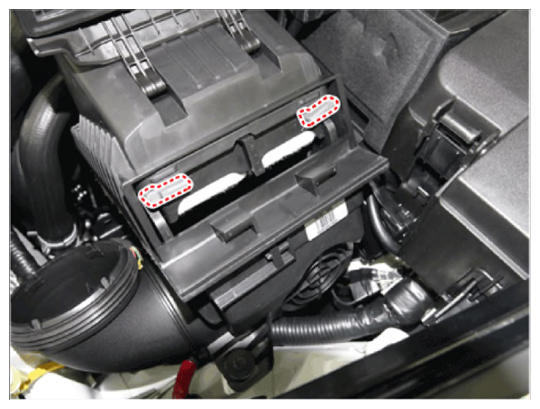

Release the element's camshaft in the direction of "UNLOCK" and pull the element forward.

Courtesy of HYUNDAI MOTOR AMERICA

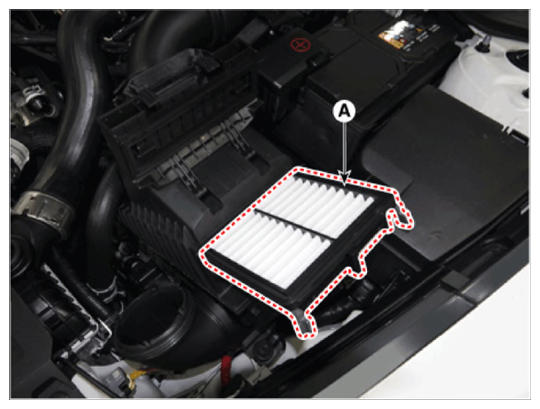

Replace the air cleaner element (A) with a new one.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- If there are any foreign substance inside the air cleaner assembly, clean the inside and replace the element.
Insert the element fully into the inner part of the air cleaner, turn the lever to the "LOCK" position, and close the element cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
