Air Cleaner Assembly

Disconnect the battery negative terminal.
Remove the engine cover.
(Refer to Engine And Transaxle Assembly - "ENGINE COVER ")

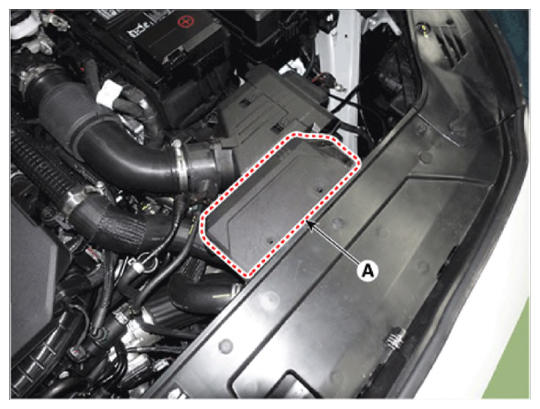

Remove the air duct (A).

Courtesy of HYUNDAI MOTOR AMERICA

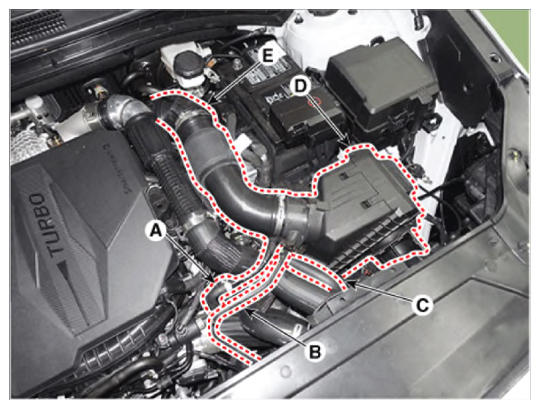

Remove the air cleaner assembly.
1. Disconnect the dual purge hose A (A).
2. Disconnect the dual purge hose B (B).
3. Disconnect the RCV hose (C).
4. Disconnect the air cleaner assembly (D) after disconnect the intake hose (E).
Tightening torque

Hose clamp:

2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb-ft)

Air cleaner bolts:

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
