Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the cluster fascia panel (A). (Refer to Body - "CLUSTER FASCIA PANEL ")

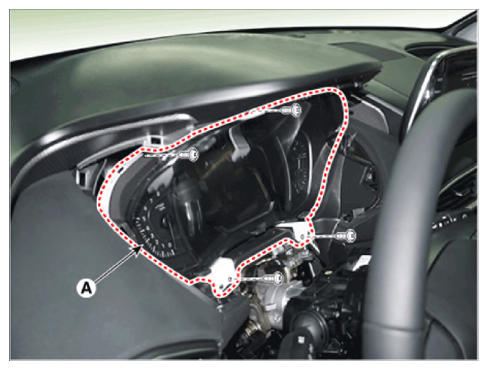

  3. Remove the cluster (A) from the housing after removing 2 screws.
    G14536290Courtesy of HYUNDAI MOTOR AMERICA

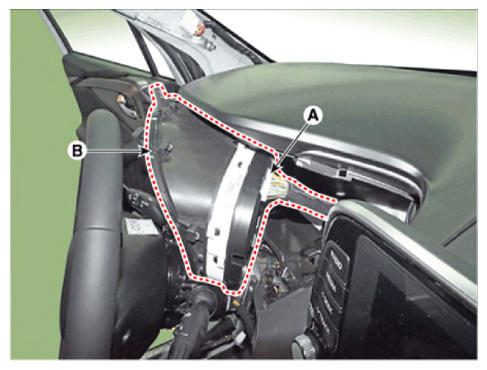

  4. Disconnect the cluster connector (A) and then remove the cluster (B).
    G14536291Courtesy of HYUNDAI MOTOR AMERICA
