Variant Coding (Backup & Input)

NOTE: * If the dashboard is newly replaced, it is necessary to back up the relevant information before replacing the dashboard to see what options are installed in the existing vehicle. And enter the existing dashboard information after replacing the dashboard, so make sure to perform variant coding.

Back up the variable coding value before replacing the cluster.
Connect the cable of diagnostic tool to the data link connector in driver side crash pad lower panel.

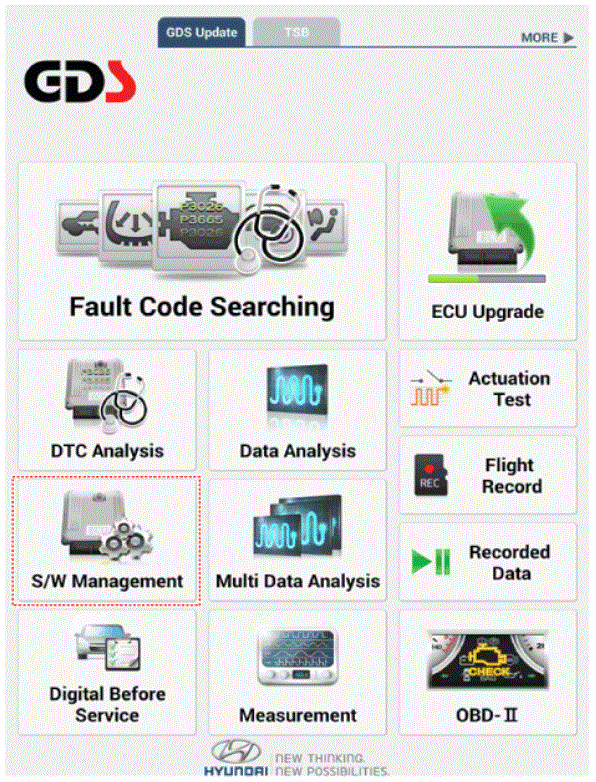

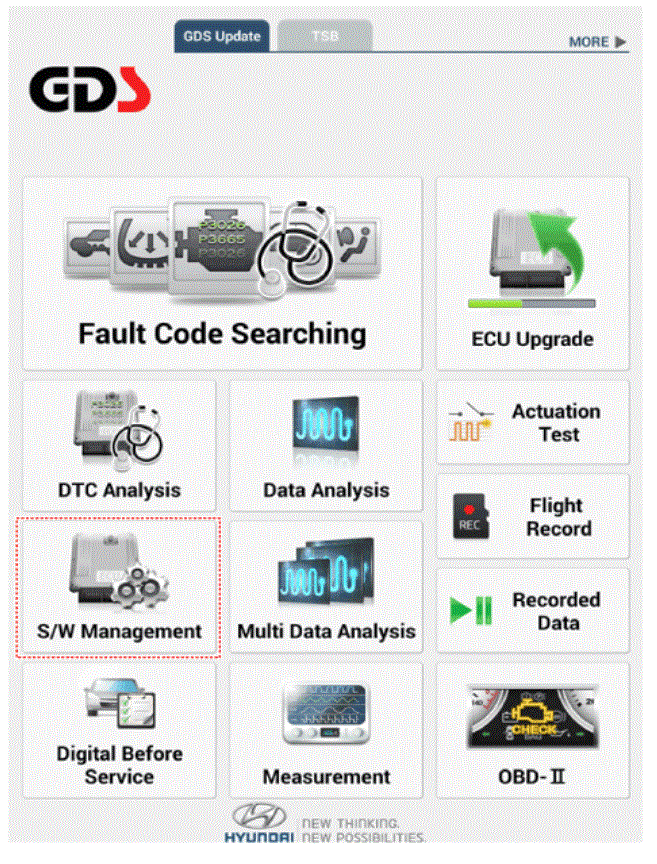

Select the 'S/W Management' and 'Car model'.

Courtesy of HYUNDAI MOTOR AMERICA

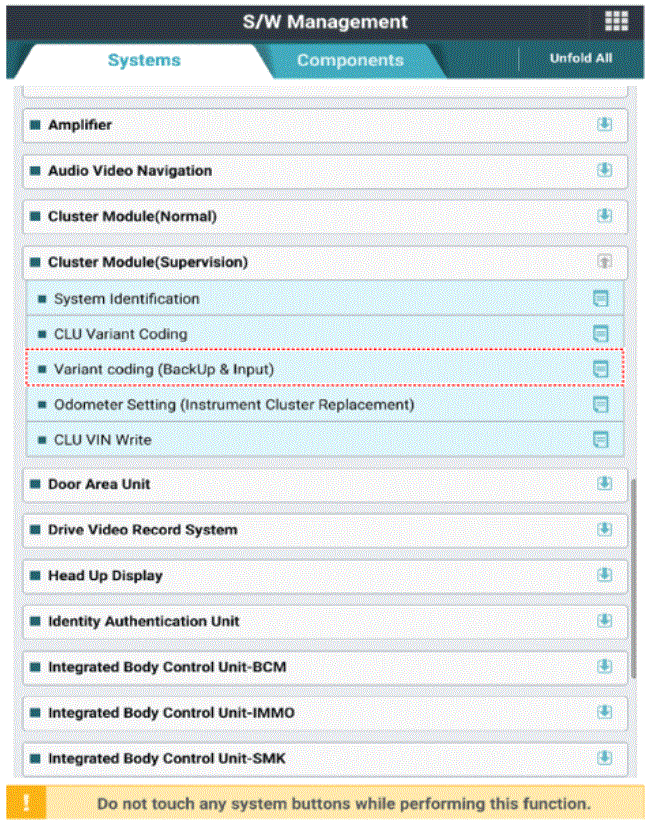

Select the 'Variant coding (Backup & Input).

Courtesy of HYUNDAI MOTOR AMERICA

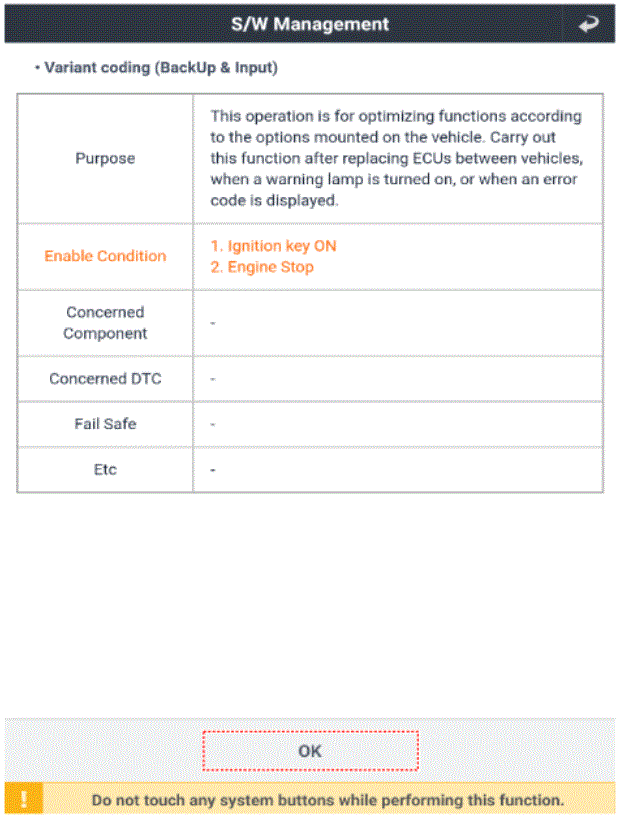

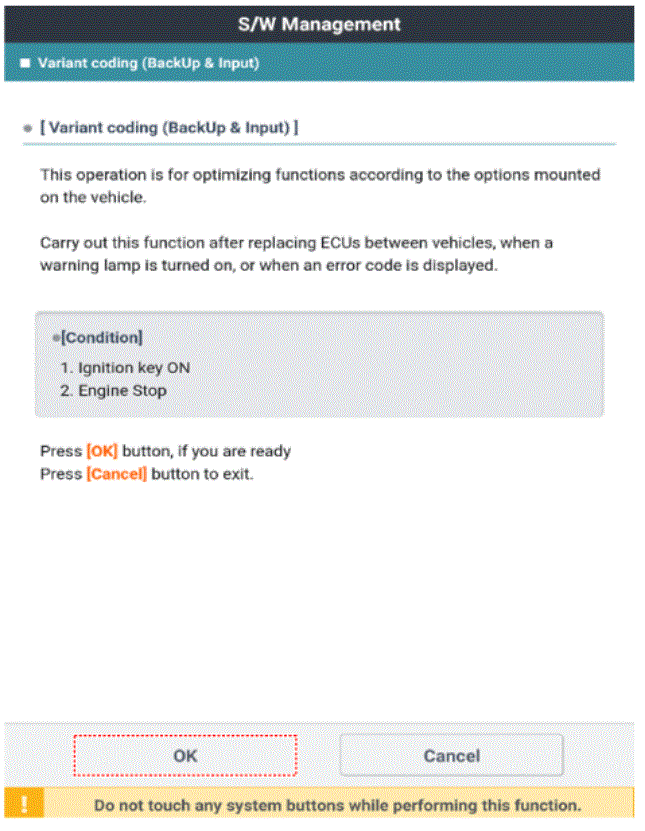

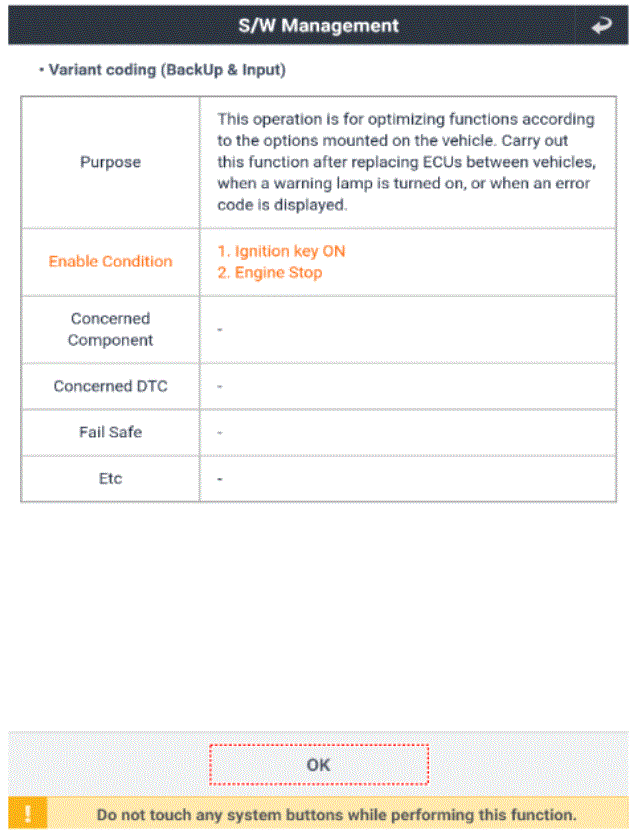

After checking purpose and enable condition, press the 'OK' button.

Courtesy of HYUNDAI MOTOR AMERICA

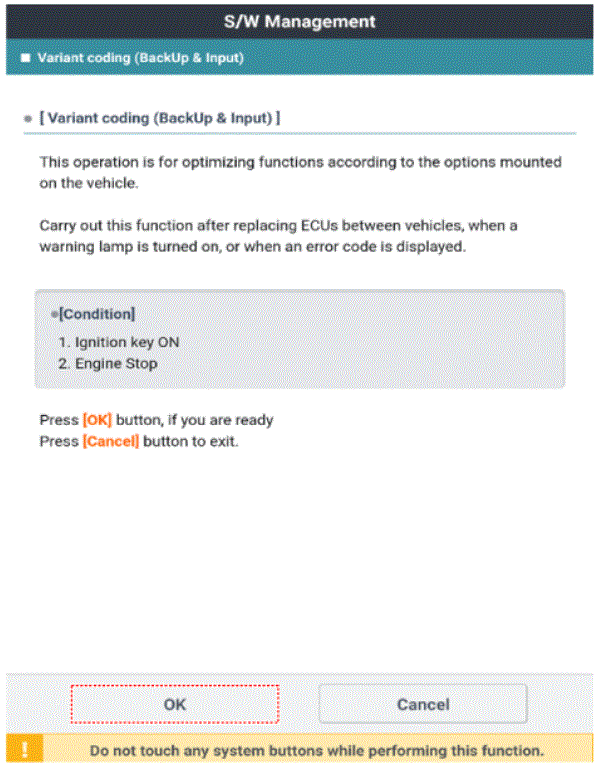

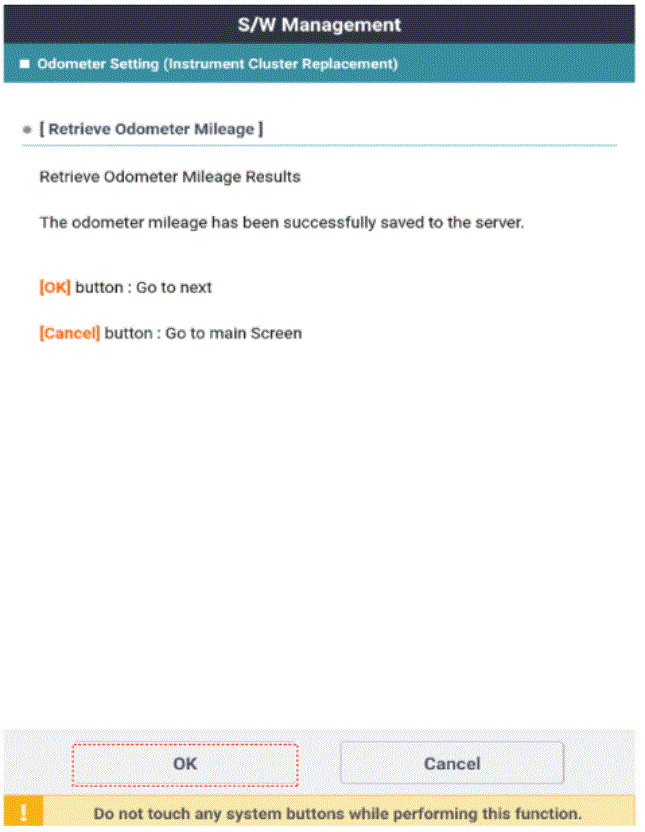

Press the 'OK' button.

Courtesy of HYUNDAI MOTOR AMERICA

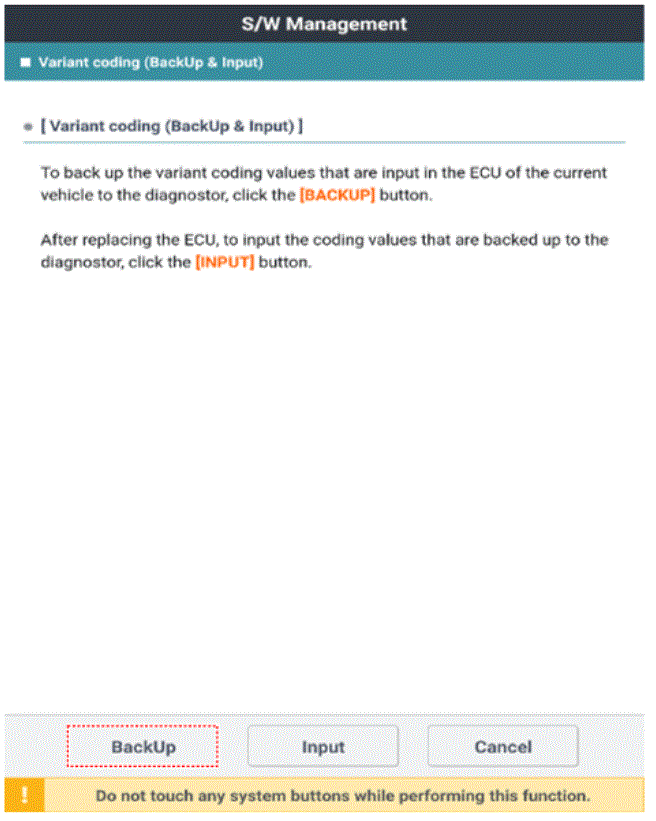

Select 'BackUP' to back up the variable coding value before replacing the cluster.

Courtesy of HYUNDAI MOTOR AMERICA

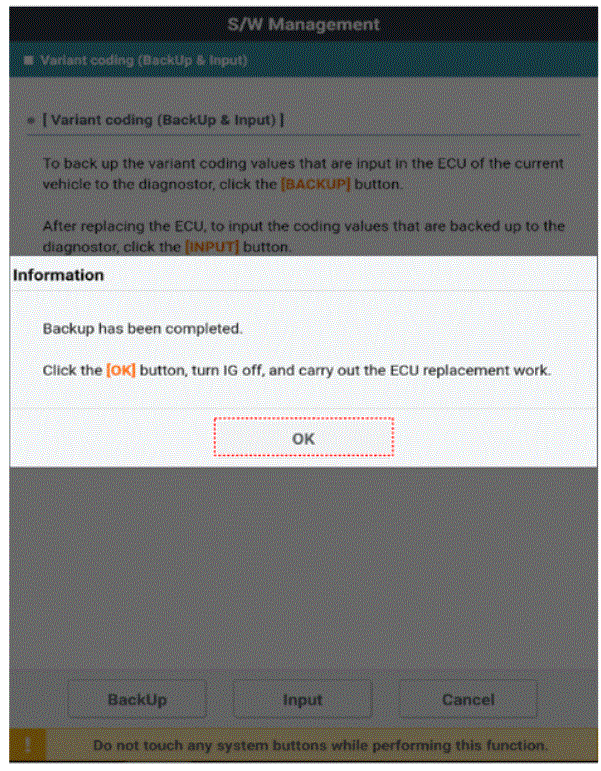

When the 'Backup' operation is completed, press the 'OK' button.

Courtesy of HYUNDAI MOTOR AMERICA

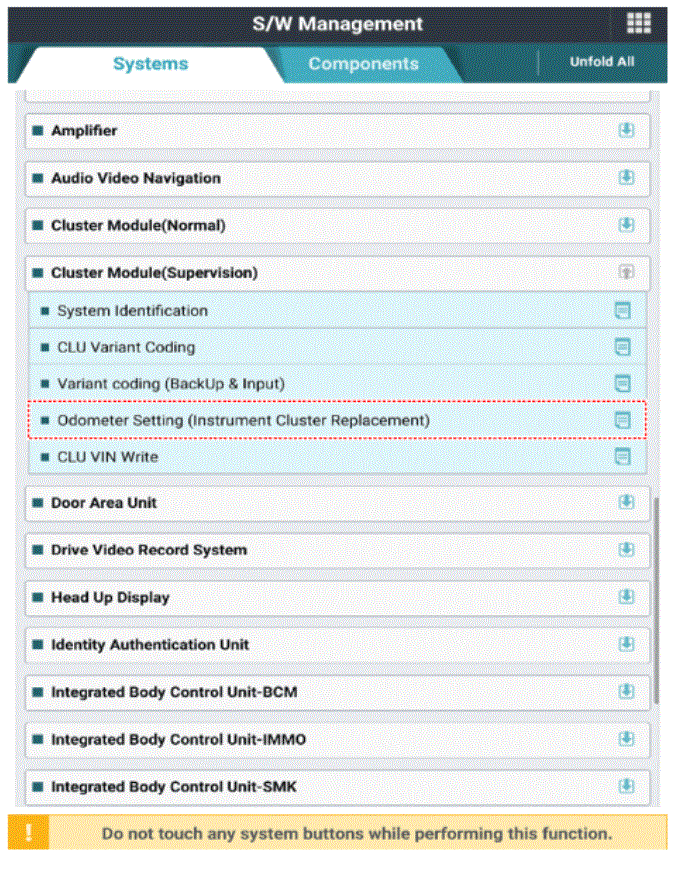

Select 'Odometer Setting (Instrument Cluster Replacement)' to set the odometer.

Courtesy of HYUNDAI MOTOR AMERICA

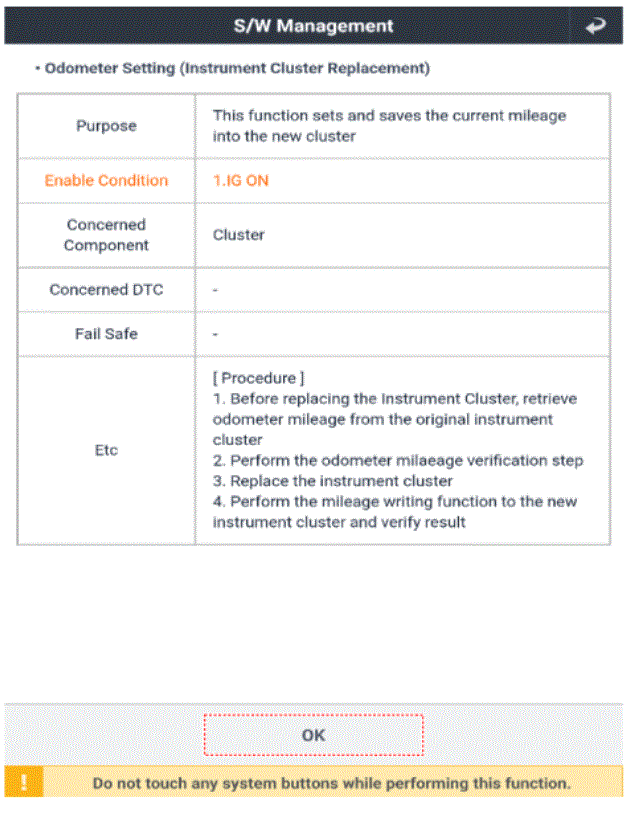

After checking purpose, enable condition and procedure, press the 'OK' button.

Courtesy of HYUNDAI MOTOR AMERICA

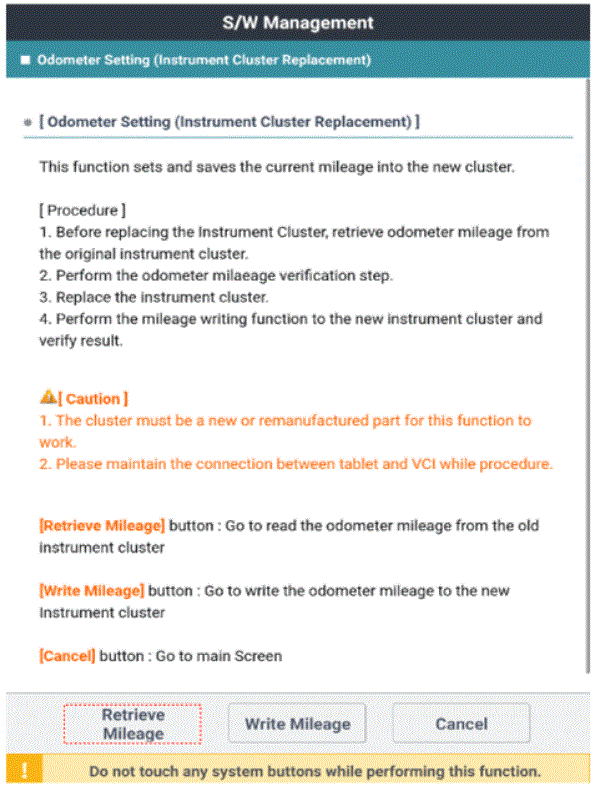

After checking the caution, press the 'Retrieve Mileage' button.

Courtesy of HYUNDAI MOTOR AMERICA

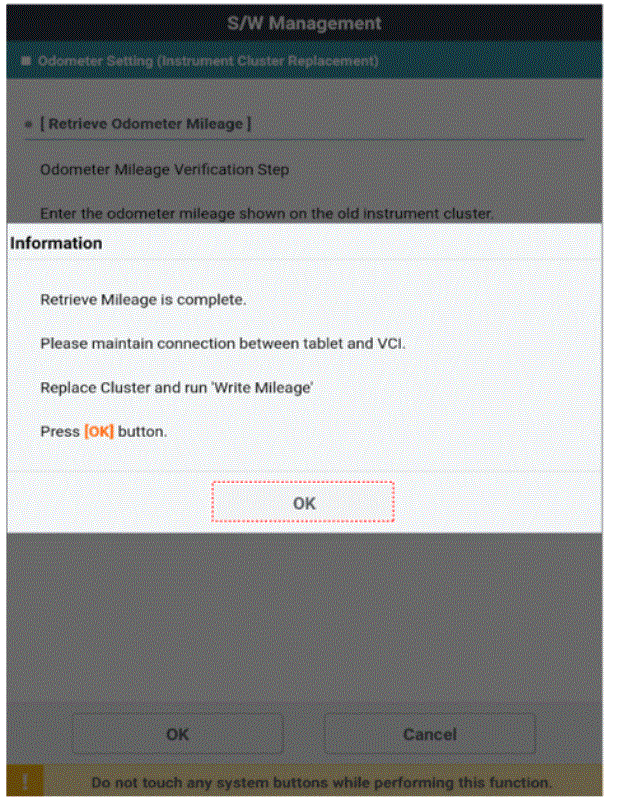

Press the 'OK' button.

Courtesy of HYUNDAI MOTOR AMERICA

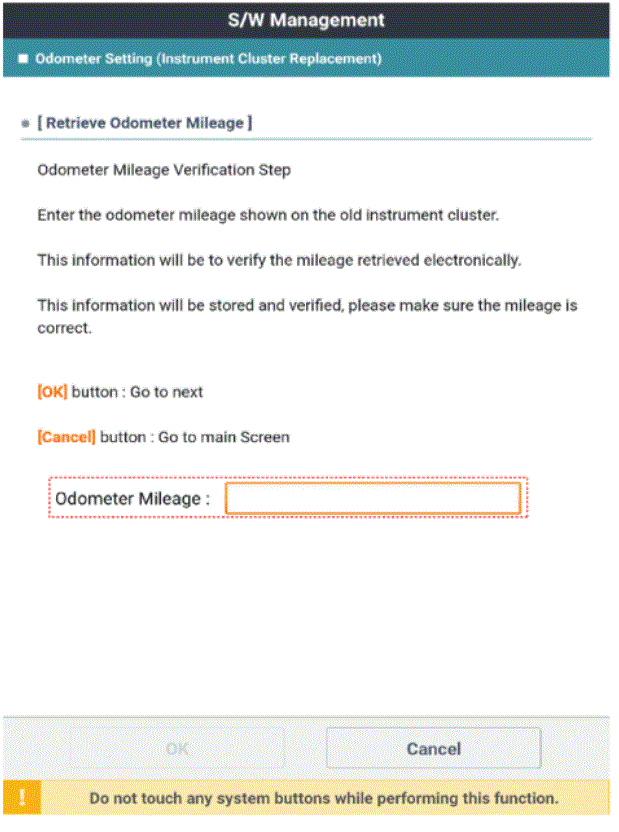

Enter the backed up odometer mileage.

Courtesy of HYUNDAI MOTOR AMERICA
Press the 'OK' button.

Courtesy of HYUNDAI MOTOR AMERICA
Replacement the new instrument cluster.
(Refer to Body Electrical System - "INSTRUMENT CLUSTER ")

NOTE: * If the variant code is not automatically entered, enter it manually.
Connect the cable of diagnostic tool to the data link connector in driver side crash pad lower panel.
Select the 'S/W Management' and 'Car model'.

Courtesy of HYUNDAI MOTOR AMERICA
Select the 'S/W Management' and 'Car model'.

Courtesy of HYUNDAI MOTOR AMERICA
After checking purpose and enable condition, press the 'OK' button.

Courtesy of HYUNDAI MOTOR AMERICA
Press the 'OK' button.

Courtesy of HYUNDAI MOTOR AMERICA
Select 'Input' to input the coding values.

Courtesy of HYUNDAI MOTOR AMERICA

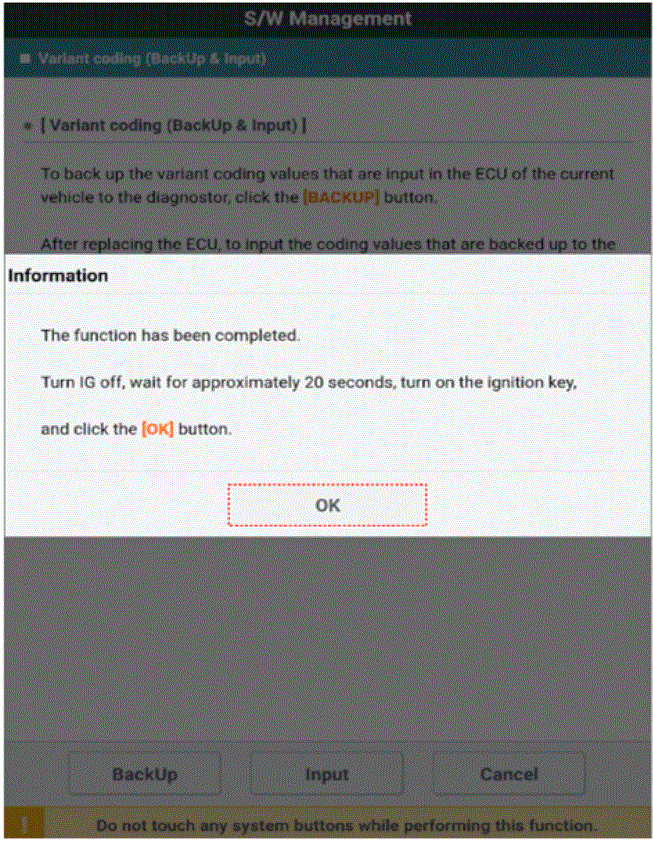

When the 'Input' operation is completed, press the 'OK' button.

Courtesy of HYUNDAI MOTOR AMERICA
When the 'Input' operation is completed, press the 'OK' button.

Courtesy of HYUNDAI MOTOR AMERICA
After checking purpose, enable condition and procedure, press the 'OK' button.

Courtesy of HYUNDAI MOTOR AMERICA

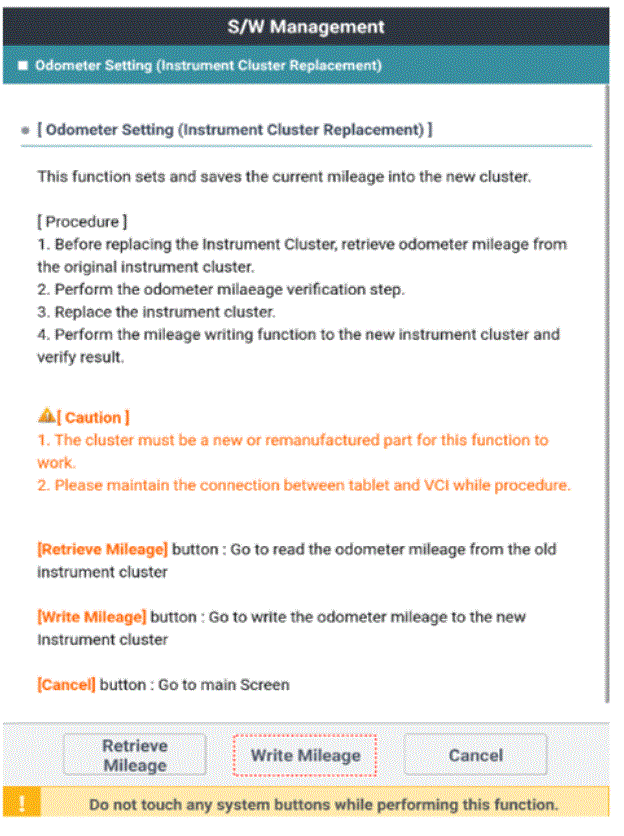

After checking the caution, press the 'Write Mileage' button.

Courtesy of HYUNDAI MOTOR AMERICA

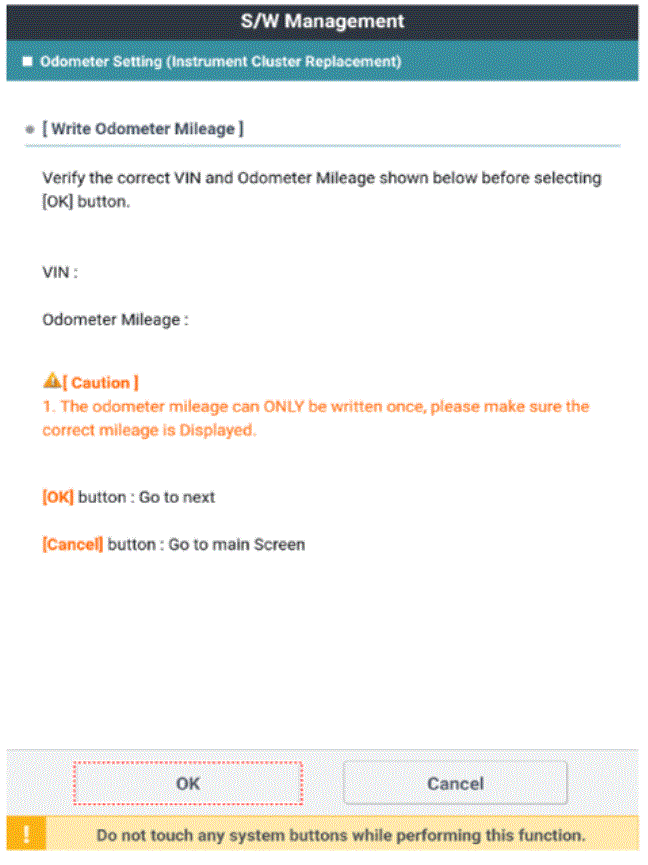

After checking the input VIN information and odometer mileage, press the 'OK' button.
WARNING: * The odometer mileage can ONLY be written once, please make sure the correct mileage is displayed.

Courtesy of HYUNDAI MOTOR AMERICA

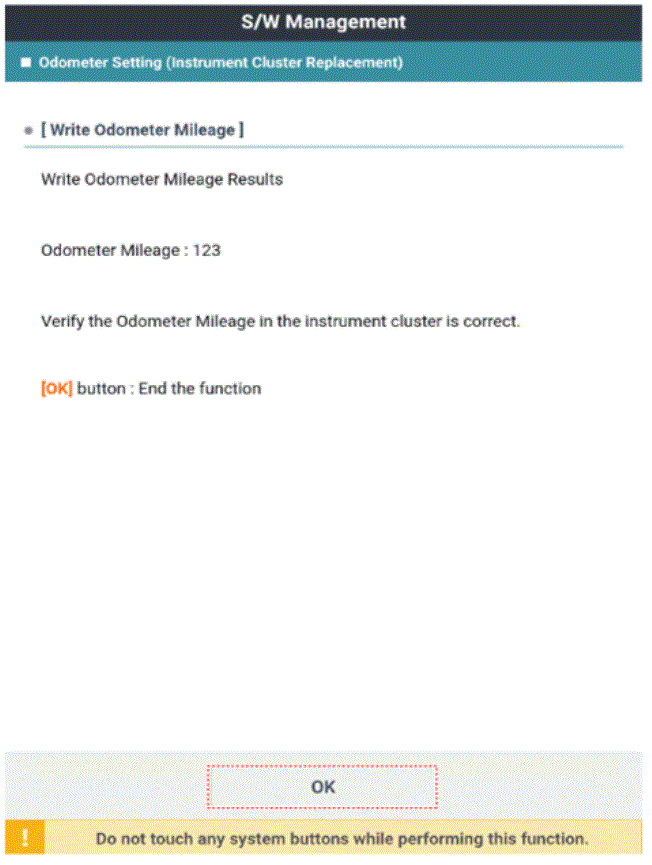

Press the 'OK' button to end the operation.

Courtesy of HYUNDAI MOTOR AMERICA
