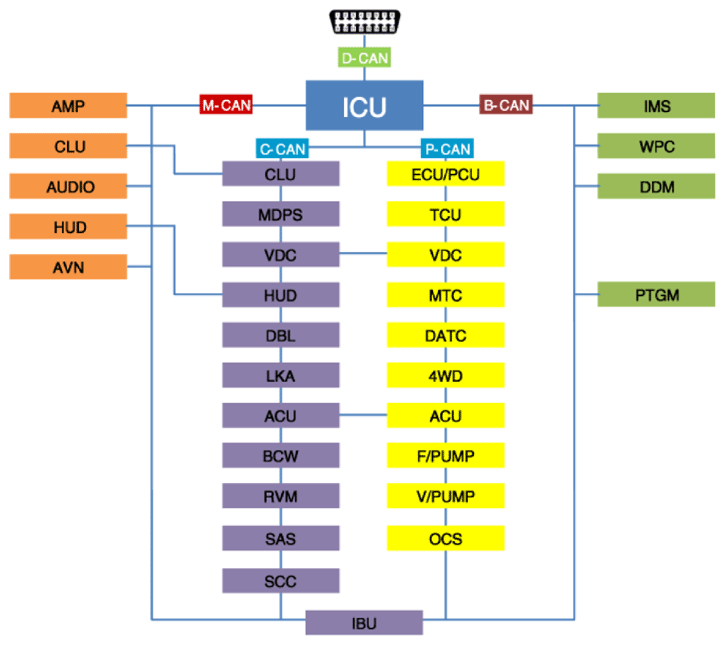

Communication Network Diagram

G14536280Courtesy of HYUNDAI MOTOR AMERICA
Abbreviation Explanation
IBU Integrated Body Control Unit
DDM Driver Door Module
PTGM Power Tail Gate Module
ICU Integrated Control Unit
PCU Powertrain Control Unit
ECU Engine Control Unit
CLU Cluster
MDPS Motor Driven Power Steering
SVM Sorrounds View Monitor
ACU Airbag Control Unit
VDC Vehicle Dynamic Control
SCC Smart Cruise Control
DBL Dynamic banding Light
LKA Lane Keeping Assist
BCW Blind-Spot Collision Warning
RVM Rear View Monitor
SAS Steering Angle Sensor
HUD Head up Display
TCU Transmission Control Unit
MTC Temp Control
DATC Dual Automatic Temp Control
4WD Four Wheel Drive
F/PUMP Fuel Pump Control Module
V/PUMP Vacuum Pump
OCS Occupant Classification System
WPC Wireless Power Charger
IMS Integrated Memory System
AMP Amplifier
AVN Head Unit (Audio/AVN)
HUD Head Up Display
