Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the instrument cluster.

    (Refer to Indicators And Gauges - "INSTRUMENT CLUSTER ")

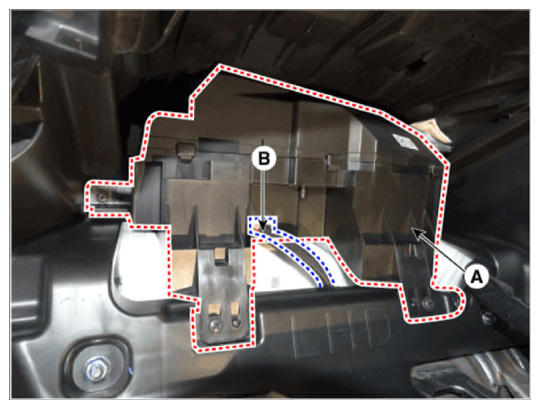

  3. Remove the head up display unit (A) after disconnecting the connector (B) and loosening the mounting screws.
    G14536648Courtesy of HYUNDAI MOTOR AMERICA
