Repair Procedures: Replacement
CAUTION:
- Put on gloves to prevent hand injuries.
Information
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Take care not to bend or scratch the rim and panels.
- Disconnect the negative (-) battery terminal.
- Remove the front pillar trim.
(Refer to Interior Trim - "FRONT PILLAR TRIM ")
- Remove the floor console assembly.
(Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")
- Remove the crash pad lower panel.
(Refer to Crash Pad - "CRASH PAD LOWER PANEL ")
- Remove the cluster fascia panel.
(Refer to Cluster Pad - "CLUSTER FASCIA PANEL ")
- Remove the audio and AVN head unit.
(Refer to Body Electrical System - "AUDIO UNIT or AVN HEAD UNIT ")
- Remove the crash pad center panel.
(Refer to Crash Pad - "CRASH PAD CENTER PANEL ")
- Remove the steering wheel.
(Refer to Steering System - "STEERING WHEEL ")
- Remove the steering column shroud lower panel.
(Refer to Crash Pad - "STEERING COLUMN SHROUD PANEL ")
- Remove the multifunction switch assembly.
(Refer to Body Electrical System - "MULTIFUNCTION SWITCH ")
- Remove the instrument cluster.
(Refer to Body Electrical System - "INSTRUMENT CLUSTER ")

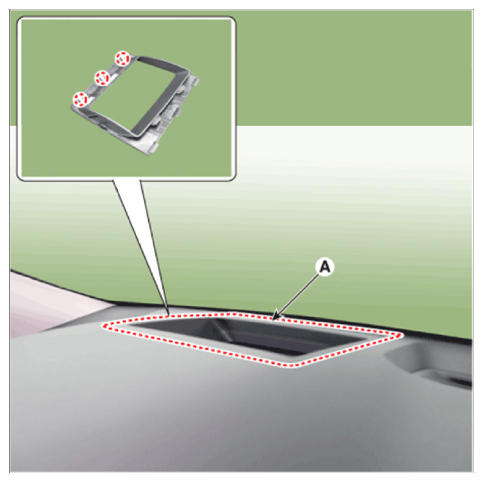

- Remove the head up display (HUD) upper cover (A).
Crash Pad-Main Crash Pad Assembly-Repair procedures
- Press the lock pin, separate the HUD unit connector (A).
- Loosen the mounting screws, remove the HUD unit assembly (A).

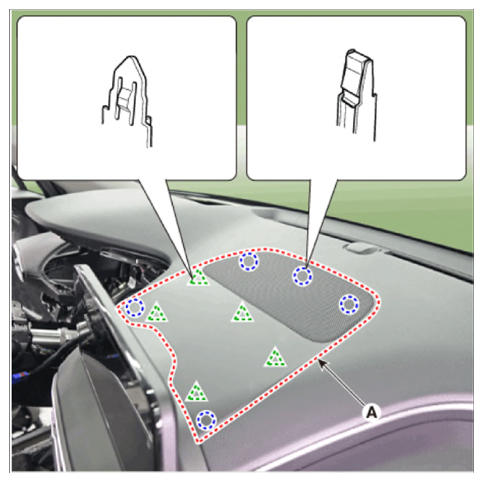

- Remove the crash pad upper garnish (A).

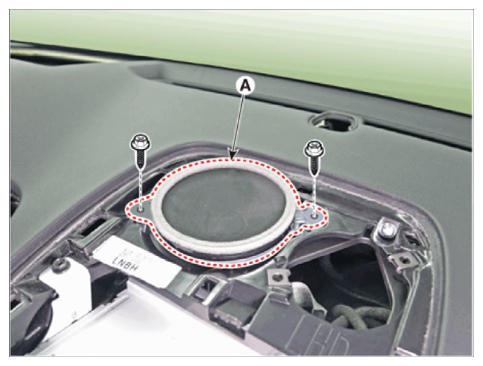

- Loosen the mounting screws, remove the center speaker (A).

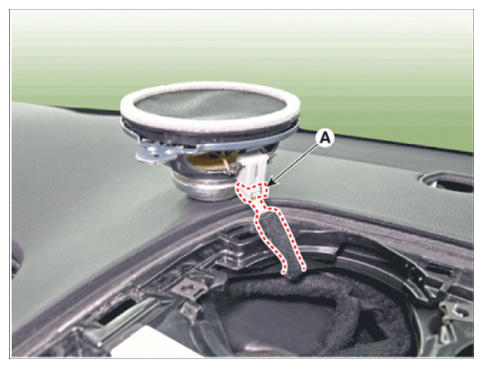

- Press the lock pin, separate the center speaker connector (A).

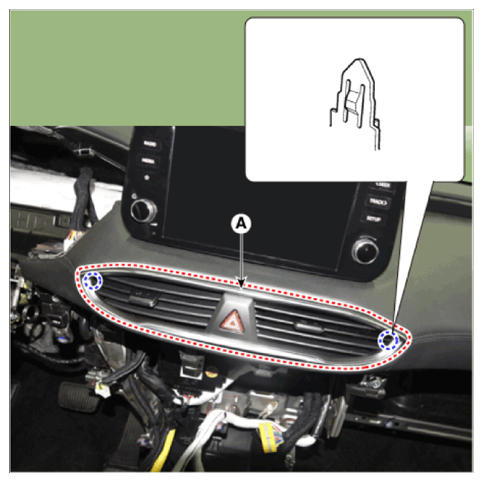

- Remove the crash pad air vent (A).

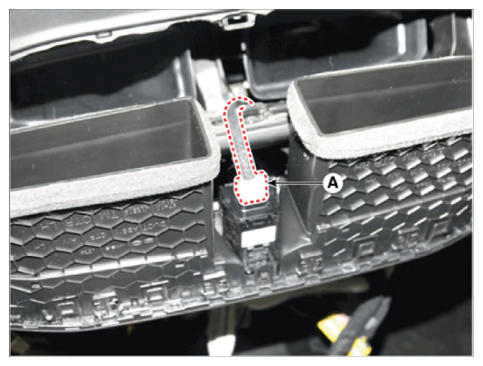

- Press the lock pin, separate the connector (A).

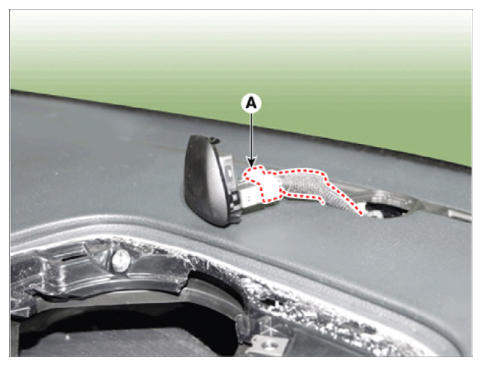

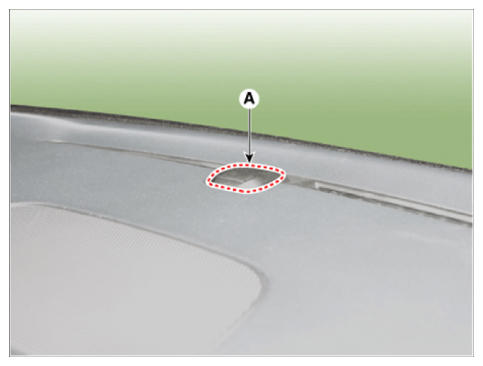

- Remove the photo sensor (A).
- Press the lock pin, separate the photo sensor connector (A).

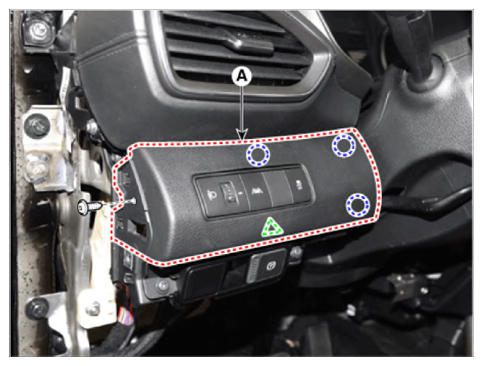

- Loosen the mounting screw, remove the crash pad garnish [LH] (A).

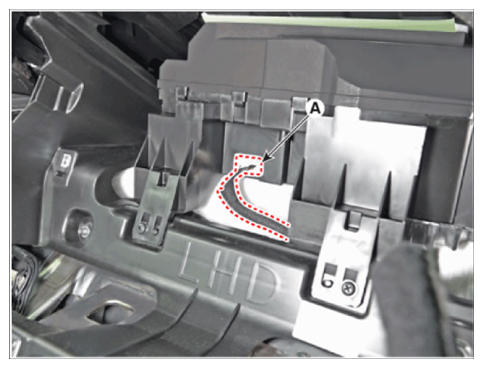

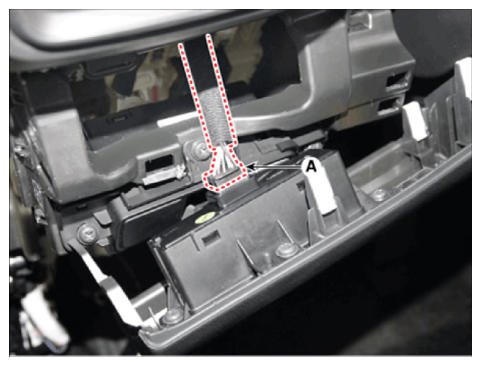

- Press the lock pin, separate the connector (A).

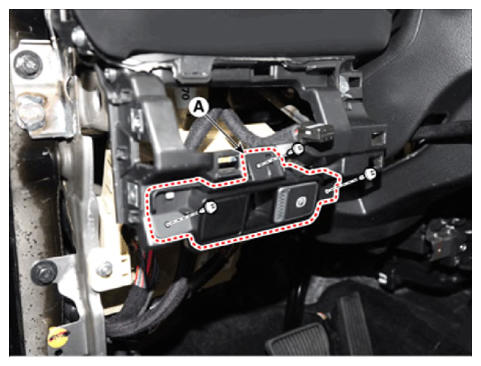

- Loosen the mounting screws, remove the EPB switch assembly (A).

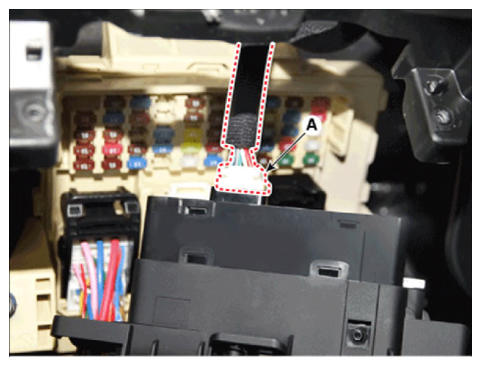

- Press the lock pin, separate the EPS switch connector (A).

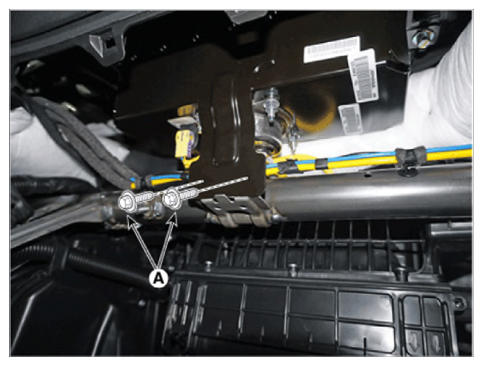

- Loosen the passenger's airbag (PAB) mounting bolts (A).
Tightening torque:
16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)

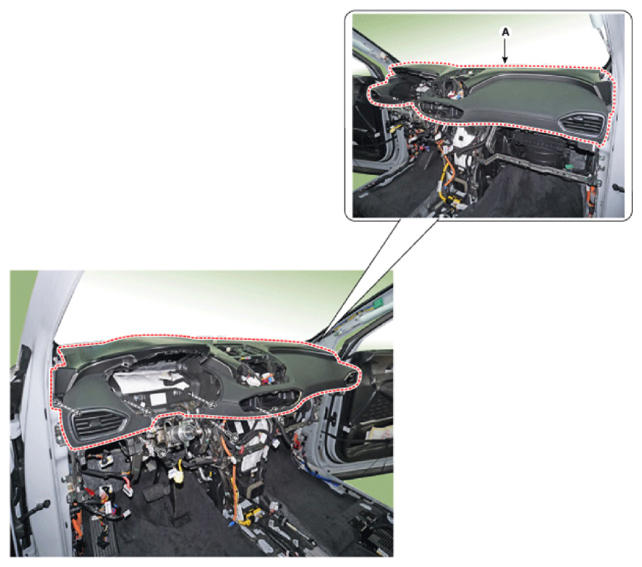

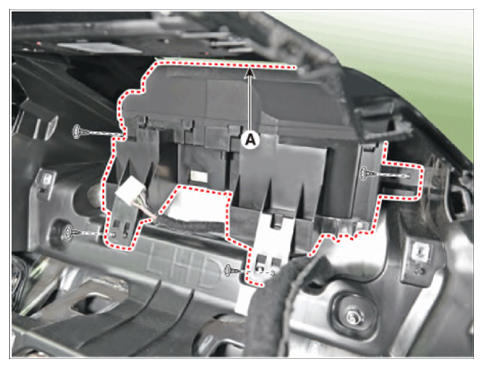

- Loosen the mounting bolts and nuts and remove the main crash pad assembly (A).
Tightening torque:
16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)

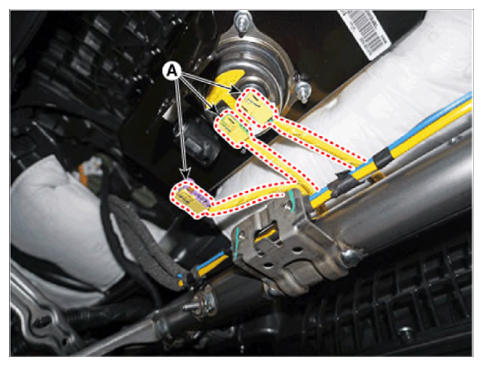

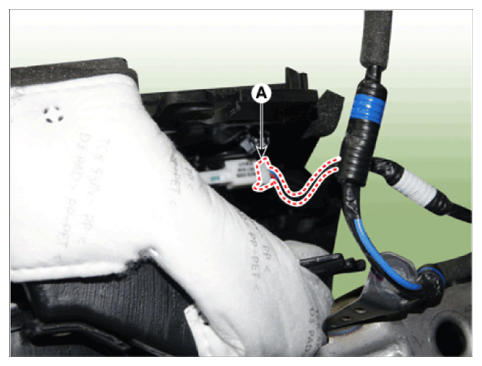

- Press the lock pin, separate the passenger's airbag (PAB) connectors (A).

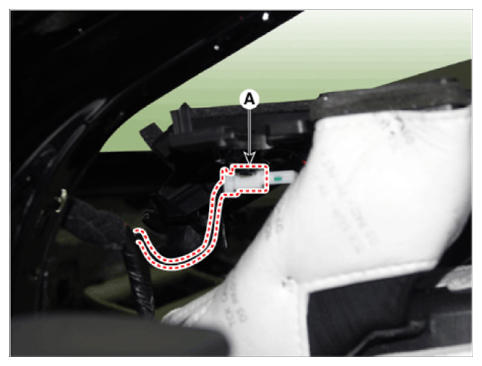

- Press the lock pin, separate the side speaker connector (A).
[LH]
[RH]
- To install, reverse removal procedure.CAUTION:
- Make sure the crash pad fits onto the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
- Make sure that each of the assembly components operates properly.
- Replace any damaged clips (or pin-typ retainers).
