Repair Procedures: Replacement

Information

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

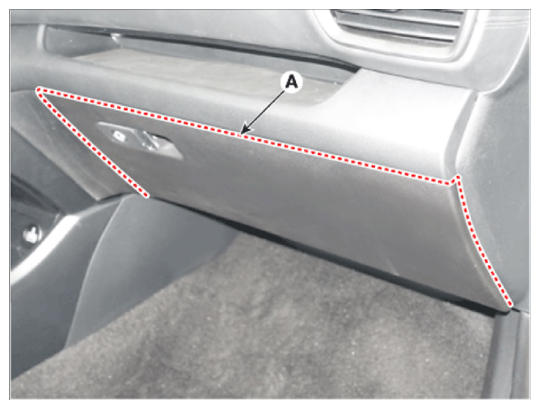

1. Open the glove box (A).

   Courtesy of HYUNDAI MOTOR AMERICA

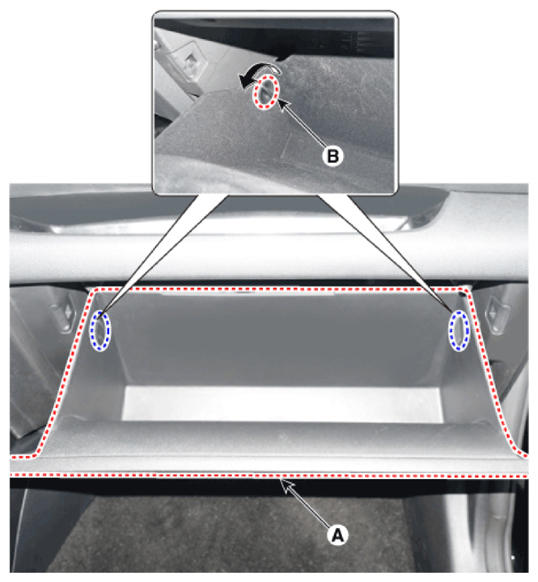

2. Pull out the both sides stopper (B) from the glove box (A).

   Courtesy of HYUNDAI MOTOR AMERICA

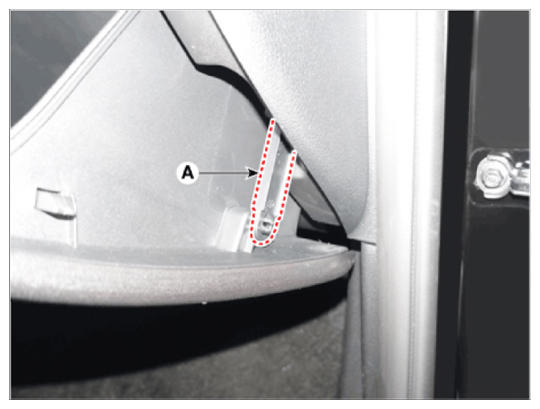

3. Remove the air damper (A) from the glove box.

   Courtesy of HYUNDAI MOTOR AMERICA

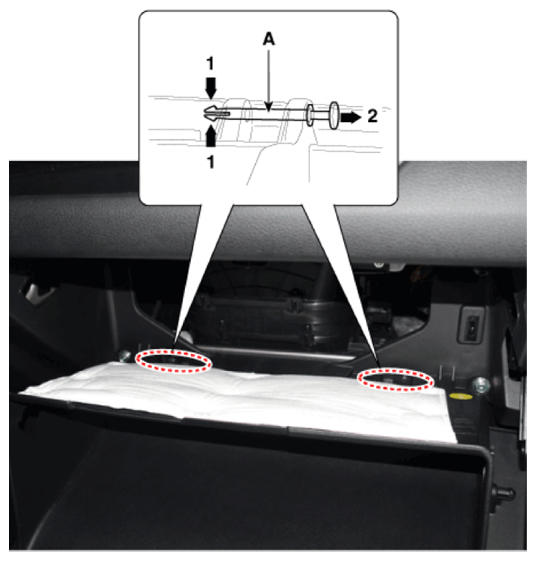

4. Remove the lock pins (A) and then remove the glove box.

   Courtesy of HYUNDAI MOTOR AMERICA

5. To install, reverse removal procedure.

   Information

   • Replace any damaged clips (or pin - type retainers).
