Repair Procedures: Replacement

CAUTION:

Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

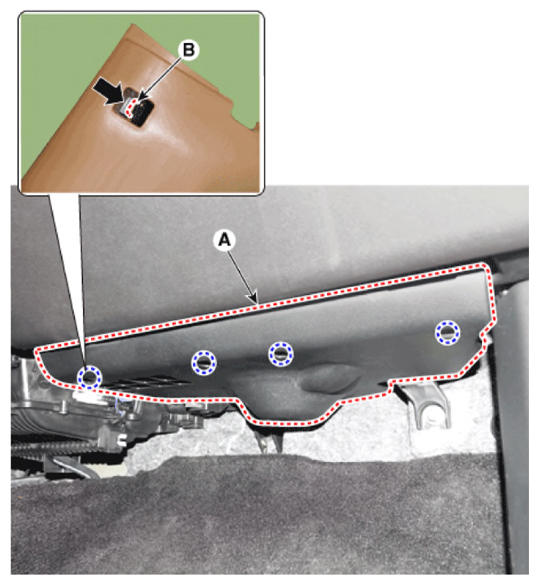

Press the lock pin (B) and then remove the crash pad under cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
