Repair Procedures: Replacement

CAUTION:
  • Put on gloves to protect your hands.
NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the floor console assembly.

    (Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")

  2. Remove the crash pad under cover.

    (Refer to Crash Pad - "CRASH PAD UNDER COVER ")

  3. Remove the glove box.

    (Refer to Crash Pad - "GLOVE BOX ")

  4. Remove the crash pad lower panel.

    (Refer to CRASH PAD LOWER PANEL ")

  5. Remove the cowl side trim.

    (Refer to Interior Trim - "COWL SIDE TRIM ")

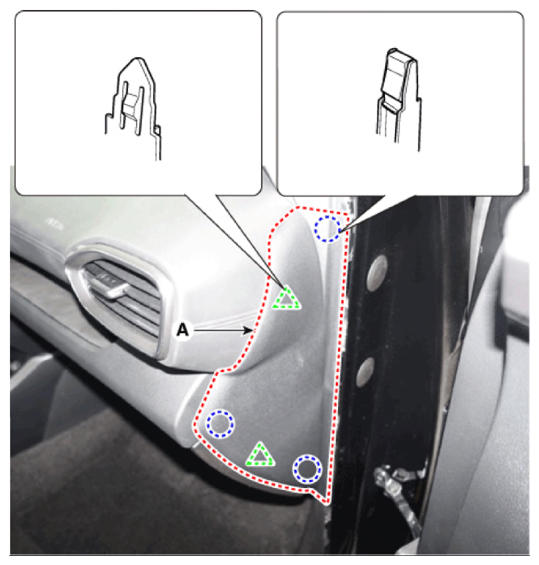

  6. Remove the crash pad side cover [RH] (A).
    G14535735Courtesy of HYUNDAI MOTOR AMERICA

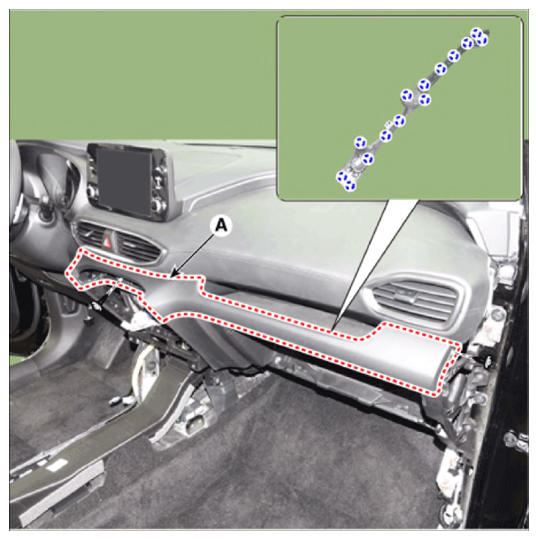

  7. Remove the crash pad garnish (A).
    G14535736Courtesy of HYUNDAI MOTOR AMERICA

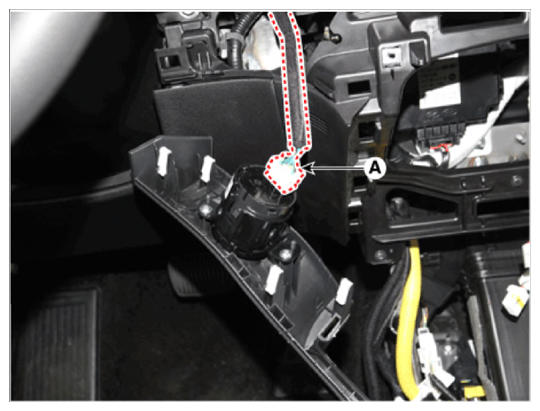

  8. Press the lock pin, separate the start button connector (A).
    G14535737Courtesy of HYUNDAI MOTOR AMERICA

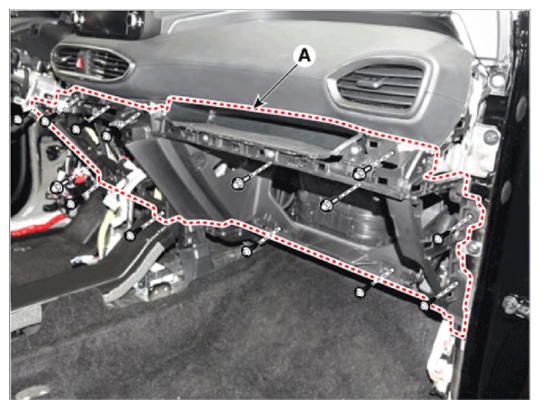

  9. Loosen the mounting screws and bolts, remove the crash pad center panel (A).
    G14535738Courtesy of HYUNDAI MOTOR AMERICA

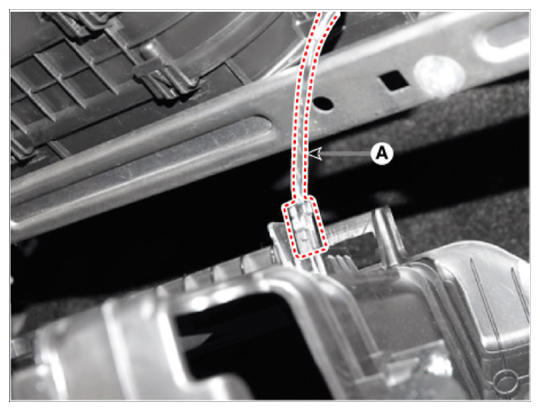

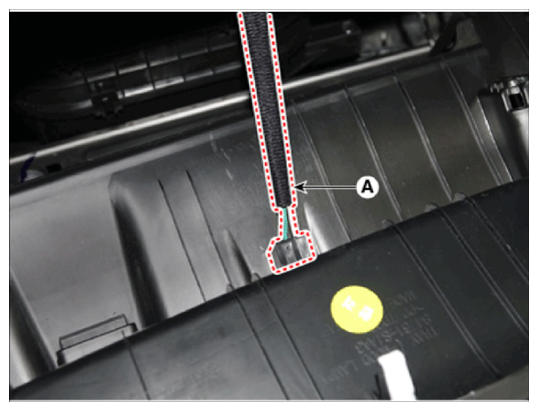

  10. Press the lock pin, separate the connectors (A).
    G14535739Courtesy of HYUNDAI MOTOR AMERICA
    G14535740Courtesy of HYUNDAI MOTOR AMERICA

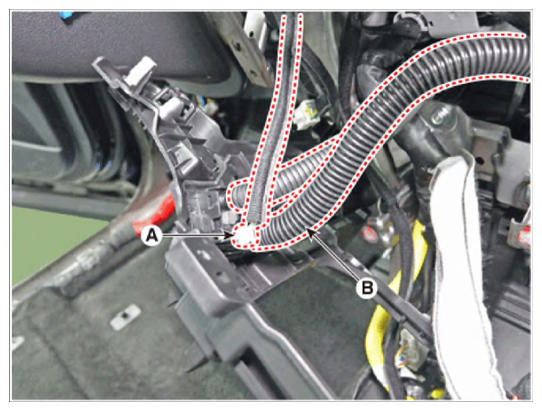

  11. Press the lock pin, separate the in-car sensor connector (A) and hoses (B).
    G14535741Courtesy of HYUNDAI MOTOR AMERICA
  12. To install, reverse removal procedure.

    Information

    • Make sure the connector are connected in properly.
    • Replace any damaged clips.
