Monitor Scantool Data

  1. Ignition switch OFF, connect GDS.
  2. Ignition switch ON and the engine OFF, select "Current Data" mode.
  3. Monitor the "Passenger CAB resistance" parameter on the GDS.

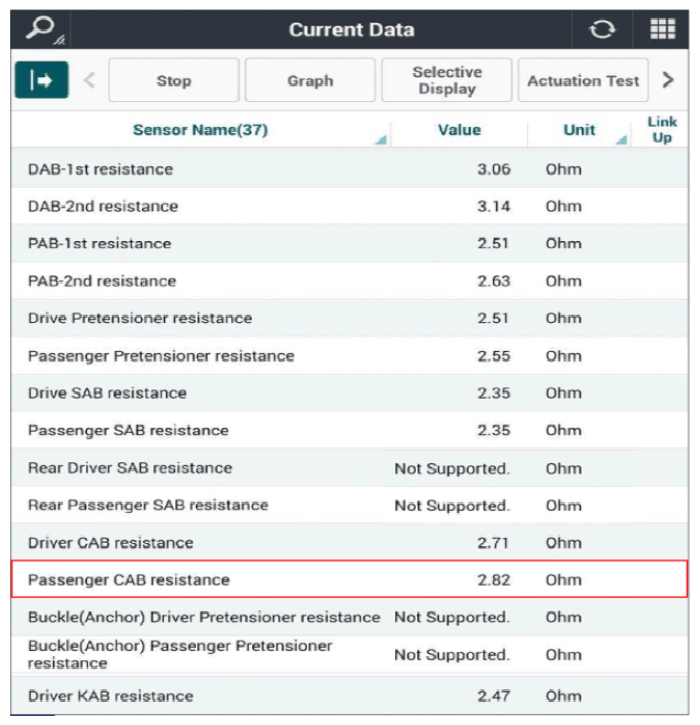

    G14456698Courtesy of HYUNDAI MOTOR AMERICA

    Reference:  Resistance of "Passenger CAB" is between 2.0Ω and 6.0Ω

    Reference:  In a case of an open in the "Passenger CAB" circuit: FAIL

    In a case of a short to battery in the "Passenger CAB" circuit: FAIL

    In a case of a short to ground in the "Passenger CAB" circuit: FAIL
