Monitor Scantool Data

1. Ignition switch OFF, connect GDS.

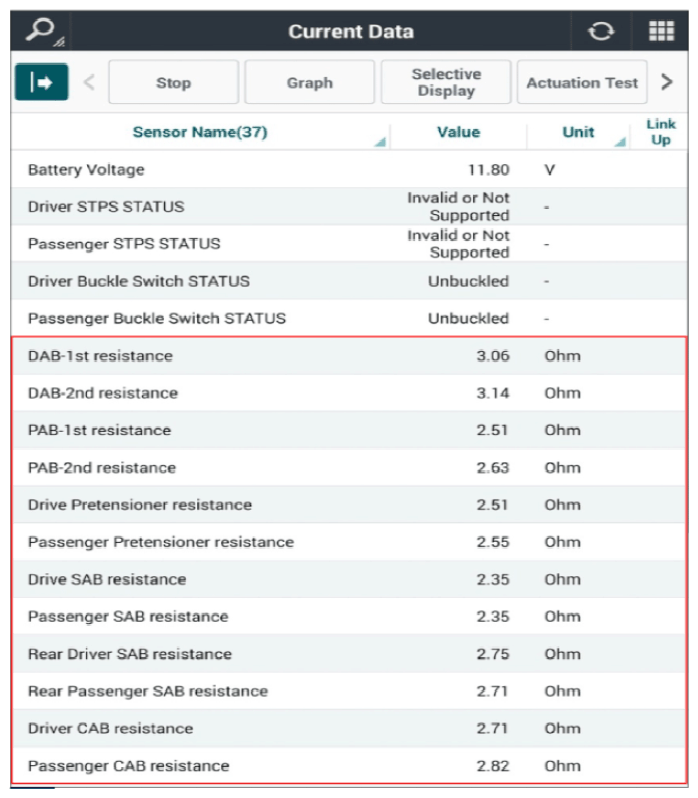

2. Ignition switch ON and the engine OFF, select "Current Data" mode.
3. Monitor the "All airbag resistance" parameter on the GDS.

Courtesy of HYUNDAI MOTOR AMERICA

Reference:  In a case of an open in the all airbag circuit: FAIL

In a case of a short to battery in the all airbag circuit: FAIL

In a case of a short to ground in the all airbag circuit: FAIL
