Repair Procedures: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

NOTE:

Take care not to scratch the body surface.

Remove the rear wheel guard
(Refer to "REAR WHEEL GUARD ")

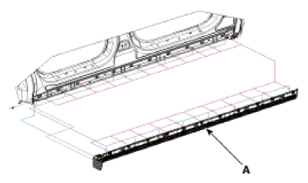

Using a flat-tip screwdriver or remover and remove the side sill molding (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
