Repair Procedures: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

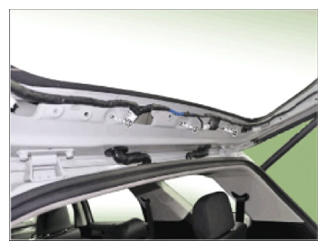

Remove the tailgate upper trim.
(Refer to Tailgate - "TAILGATE TRIM ")

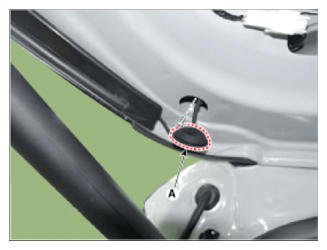

Remove the rear spoiler plug hole (A) and loosen the mounting nuts.
[LH]

Courtesy of HYUNDAI MOTOR AMERICA

[RH]

Courtesy of HYUNDAI MOTOR AMERICA
Separate the rear stop lamp connector (A) and rear washer nozzle (B).

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the mounting nuts and remove the rear spoiler (A).
Tightening torque:

2.9 - 3.9 N.m (0.3 - 0.4 kgf.m, 2.2 - 2.9 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips (or pin-type retainers).
