Repair Procedures: Replacement
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
NOTE:
- Take care not to scratch the body surface.
- Remove the front wheel guard.
(Refer to "FRONT WHEEL GUARD ")

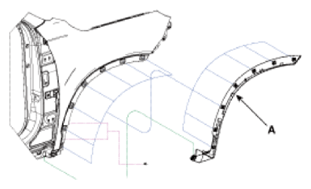

- Using a flat-tip screwdriver or remover and remove the fender garnish (A).
- To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
