Repair Procedures: Replacement

NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.
CAUTION:
  • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front pillar trim.

    (Refer to Interior Trim - "FRONT PILLAR TRIM ")

  3. Remove the floor console assembly.

    (Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")

  4. Remove the cluster fascia panel.

    (Refer to Crash Pad - "CLUSTER FASCIA PANEL ")

  5. Remove the head up display unit.

    (Refer to Body Electrical System - "HEAD UP DISPLAY UNIT ")

  6. Remove the rear center fascia panel.

    (Refer to Crash Pad - "CENTER FASCIA PANEL ")

  7. Remove the audio and AVN head unit.

    (Refer to Body Electrical System - "AUDIO UNIT ")

  8. Remove the crash pad garnish.

    (Refer to Crash Pad - "CRASH PAD GARNISH ")

  9. Remove the crash pad center panel.

    (Refer to Crash Pad - "CRASH PAD CENTER PANEL ")

  10. Remove the steering wheel.

    (Refer to Steering System - "STEERING WHEEL ")

  11. Remove the steering column shroud lower panel.

    (Refer to Crash Pad - "STEERING COLUMN SHROUD PANEL ")

  12. Remove the multifunction switch assembly.

    (Refer to Body Electrical System - "MULTIFUNCTION SWITCH ")

  13. Using a flat-tip screwdriver or remover and remove the center speaker grill (A).
    G14425016Courtesy of HYUNDAI MOTOR AMERICA
  14. Press the lock pin and separate the photo sensor connector (A) and security sensor connector (B).
    G14425017Courtesy of HYUNDAI MOTOR AMERICA
  15. Remove the cluster speaker and center speaker.

    (Refer to Body Electrical System - "SPEAKER ")

  16. Loosen the mounting screws and remove the crash pad side switch assembly (A).
    G14425018Courtesy of HYUNDAI MOTOR AMERICA
  17. Press the lock pin and separate the switch assembly connector (A).
    G14425019Courtesy of HYUNDAI MOTOR AMERICA
  18. Loosen the airbag mounting bolts (A).
    G14425020Courtesy of HYUNDAI MOTOR AMERICA

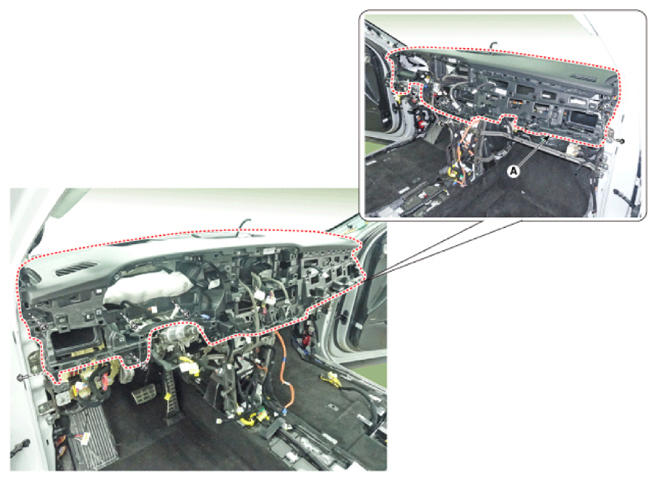

  19. Loosen the mounting bolts, nuts and remove the main crash pad assembly (A).
    G14425021Courtesy of HYUNDAI MOTOR AMERICA
  20. Press the lock pin and separate the passenger airbag module connector (A).
    G14425022Courtesy of HYUNDAI MOTOR AMERICA
  21. To install, reverse removal procedure.
    CAUTION:
    • Make sure the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
    • Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
    • Make sure that each of the assembly components operates properly.
    • Replace any damaged clips (or pin-typ retainers).
