Repair Procedures: Replacement

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

CAUTION:

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Using a flat-tip screwdriver and remove the crash pad side cover [LH] (A).

Courtesy of HYUNDAI MOTOR AMERICA

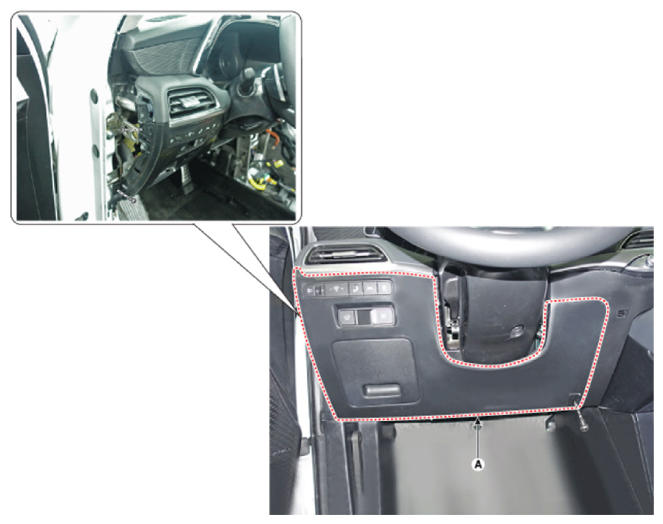

Loosen the mounting screws and remove the crash pad lower panel (A).

Courtesy of HYUNDAI MOTOR AMERICA
Press the lock pin and separate the EPB connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Press the lock pin and separate the diagnosis connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
- Make sure the connector are connected in properly.
