Crash Pad Garnish LH
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
CAUTION:
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the rear center fascia panel.
(Refer to "CENTER FASCIA PANEL ")

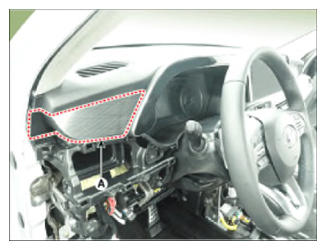

- Using a flat-tip screwdriver and remove the crash pad garnish [LH] (A).
- To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
