Crash Pad Center Garnish
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
CAUTION:
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the crash pad side cover [RH].
(Refer to "CRASH PAD SIDE COVER ")

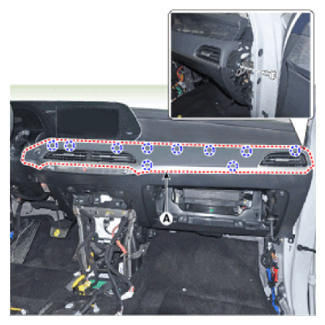

- Loosen the mounting screws and remove the crash pad center garnish (A).

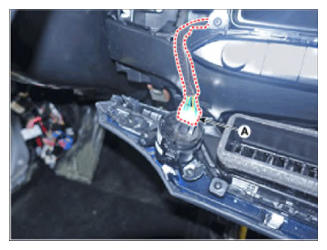

- Separate the start button connector (A).
- To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
- Make sure the connector are connected in properly.
