Repair Procedures: Replacement

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

CAUTION:

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

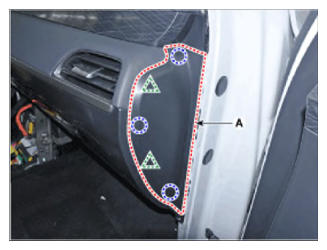

Using a flat-tip screwdriver or remover and remove the crash pad side cover [RH] (A).

Courtesy of HYUNDAI MOTOR AMERICA

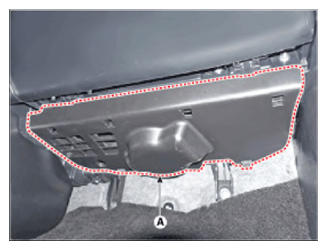

Remove the crash pad under cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the floor console.
(Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")
Remove the cowl side trim.
(Refer to Interior Trim - "COWL SIDE TRIM ")
Remove the glove box.
(Refer to Crash Pad - "GLOVE BOX ")
Remove the Crash Pad lower panel.
(Refer to Crash Pad - "CRASH PAD LOWER PANEL ")
Remove the crash pad center garnish.
(Refer to "CRASH PAD GARNISH ")
Remove the AVN keyboard assembly
(Refer to AVN System - "AVN KEYBOARD ASSEMBLY ")

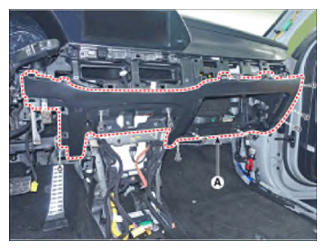

Loosen the mounting screws, nuts, bolt and remove the crash pad center panel (A).

Courtesy of HYUNDAI MOTOR AMERICA

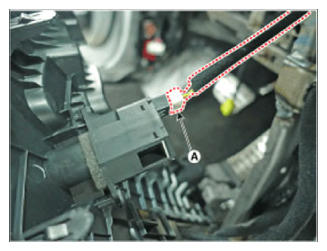

Press the lock pin and separate the in car sensor connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

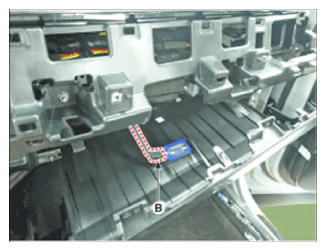

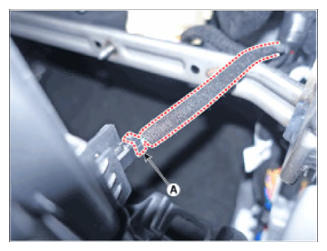

Separate the glove box lamp switch connector (A) and glove box lamp connector (B).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
- Make sure the connector are connected in properly.
