Repair Procedures: Replacement

NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.
CAUTION:
  • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Disconnect the negative (-) battery terminal.
  2. Recover the refrigerant with a recovery/recycling/charging station.
  3. When the engine is cool, drain the engine coolant from the radiator.

    (Refer to Engine Mechanical System - "COOLANT ")

  4. Remove the cowl top cover.

    (Refer to "COWL TOP COVER ")

  5. Disconnect the expansion valve from the evaporator core.

    (Refer to Heating, Ventilation And Air Conditioning - "HEATER UNIT ")

  6. Disconnect the inlet and outlet heater hoses from the heater unit.

    (Refer to Heating, Ventilation And Air Conditioning - "HEATER UNIT ")

  7. Remove both sides of front seat assembly.

    (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

  8. Remove the main crash pad assembly.

    (Refer to Crash Pad - "MAIN CRASH PAD ASSEMBLY ")

  9. Disconnect the steering column connectors.

    (Refer to Steering System - "STEERING COLUMN AND SHAFT ")

  10. Loosen the mounting nuts and through bolts in the frontal area and lower the steering column.

    (Refer to Steering System - "STEERING COLUMN AND SHAFT ")

  11. Loosen the engine room cowl cross bar assembly mounting bolts.

    Tightening torque:

    16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)

    G14425024Courtesy of HYUNDAI MOTOR AMERICA
  12. Separate the floor carpet (A) backwards.
    G14425025Courtesy of HYUNDAI MOTOR AMERICA
  13. Loosen the mounting nuts and remove the front air duct (A).
    G14425026Courtesy of HYUNDAI MOTOR AMERICA
  14. Press the lock pin and separate the airbag control module (SRSCM) connector (A).
    G14425027Courtesy of HYUNDAI MOTOR AMERICA
  15. Disconnect the connector (A) and the mounting wiring fasteners in the front pillar.

    [Driver's]

    G14425028Courtesy of HYUNDAI MOTOR AMERICA
    G14425029Courtesy of HYUNDAI MOTOR AMERICA
  16. Separate the passenger compartment junction box connectors (A).
    G14425030Courtesy of HYUNDAI MOTOR AMERICA
  17. Separate the multi box connectors (A).

    [Driver's]

    G14425031Courtesy of HYUNDAI MOTOR AMERICA

    [Passenger's]

    G14425032Courtesy of HYUNDAI MOTOR AMERICA
  18. Remove the surround view monitoring (SVM) unit.

    (Refer to Body Electrical System - "SVM UNIT ")

  19. Separate the heater and blower unit connector.

    [Driver's]

    1. Separate the auto defogging actuator connector (A), temperature control actuator [LH] connector (B).
      G14425033Courtesy of HYUNDAI MOTOR AMERICA
    2. Separate the evaporator sensor connector (A).
    G14425034Courtesy of HYUNDAI MOTOR AMERICA

    [Passenger]

    1. Separate the temperature control actuator [RH] connector (A), power mosfet connector (B).
      G14425035Courtesy of HYUNDAI MOTOR AMERICA
    2. Separate the intake actuator connector (A), cluster ionizer connector (B), mode actuator connector (c).
      G14425036Courtesy of HYUNDAI MOTOR AMERICA
    3. Separate the blower motor connector (A).
    G14425037Courtesy of HYUNDAI MOTOR AMERICA

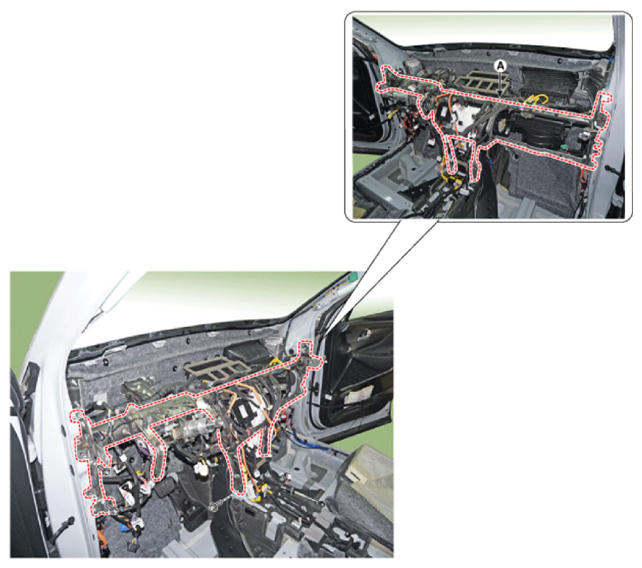

  20. Loosen the mounting bolts and remove the cowl crops bar assembly (A).

    Tightening torque:

    16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)

    G14425038Courtesy of HYUNDAI MOTOR AMERICA
  21. To install, reverse removal procedure.

    Information

    • Make sure the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
    • Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
    • Make sure that each of the assembly components operates properly.
    • Replace any damaged clips (or pin-type retainers).
