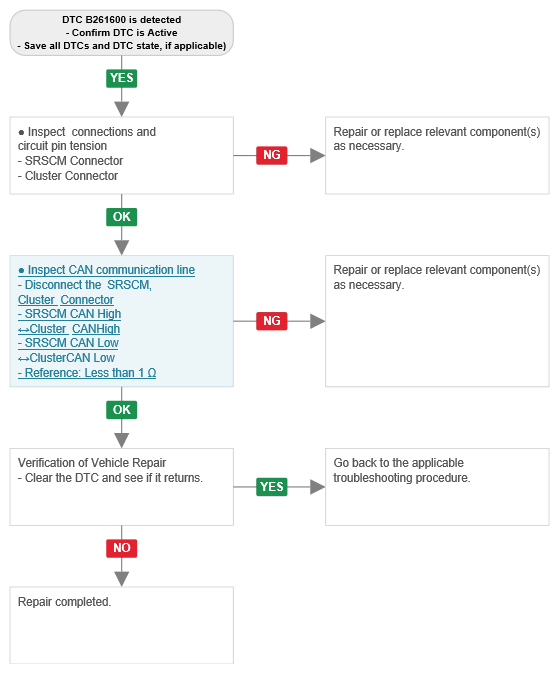

Home >> Hyundai >> 2021 >> Palisade Calligraphy, 4WD >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag System Diagnosis (4 Of 4) >> DTC B2616-00: Cluster Airbag Warning Lamp CAN Message Invaild >> Troubleshooting >> Diagnostic Flowchart
