Home >> Hyundai >> 2021 >> Palisade Calligraphy, 4WD >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag System Diagnosis (2 Of 4) >> DTC B1414-00: SIS (Side Impact Sensor) Front-Driver Wrong ID >> Troubleshooting >> Diagnostic Flowchart

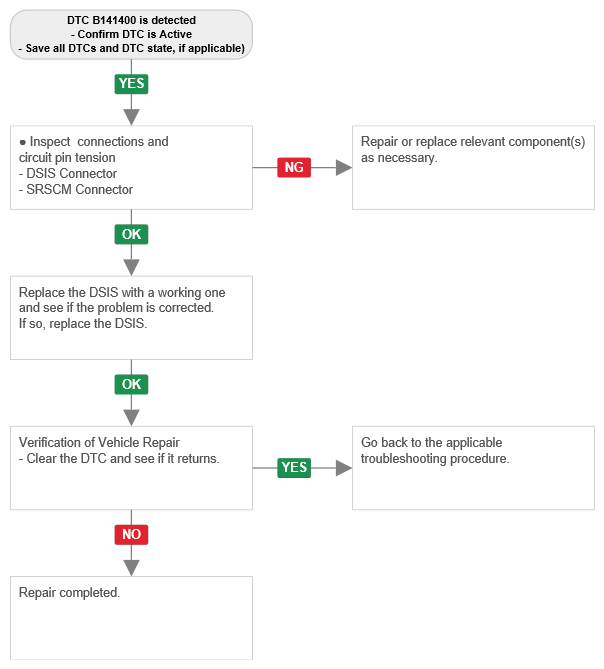

Diagnostic Flowchart

G14456676Courtesy of HYUNDAI MOTOR AMERICA
