Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. HEV Not Ready or Ready
  1. Ignition switch "OFF"
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "DCT Learning Function" and go to "VERIFICATION OF REPAIR " procedure.

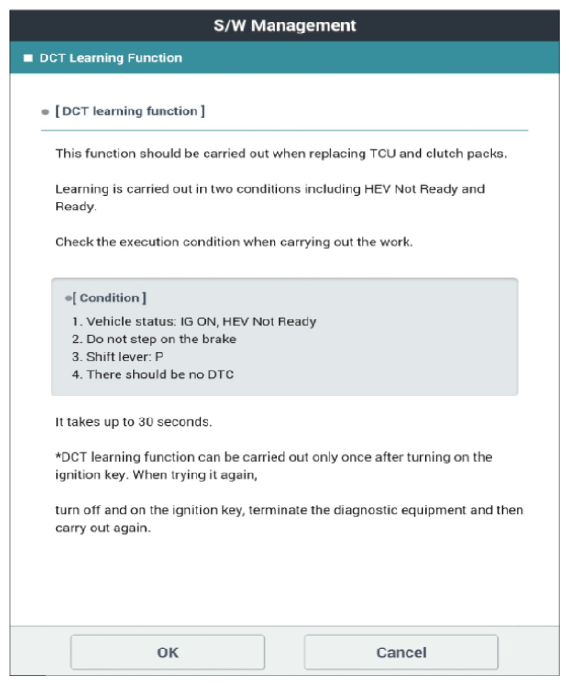

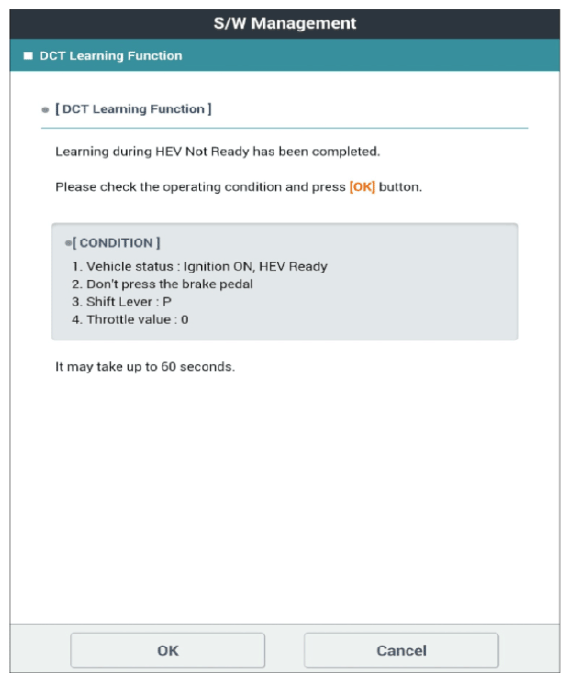

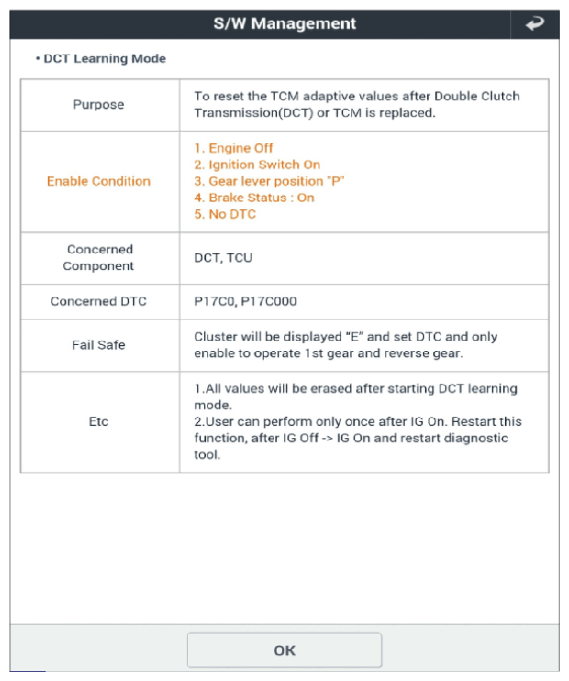

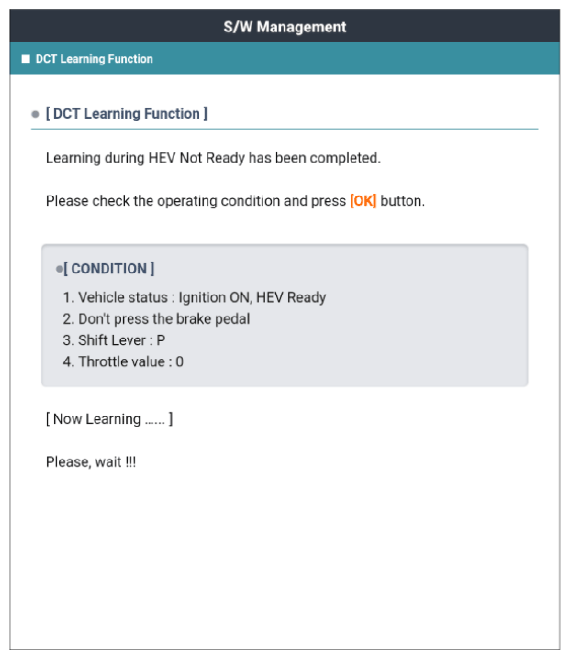

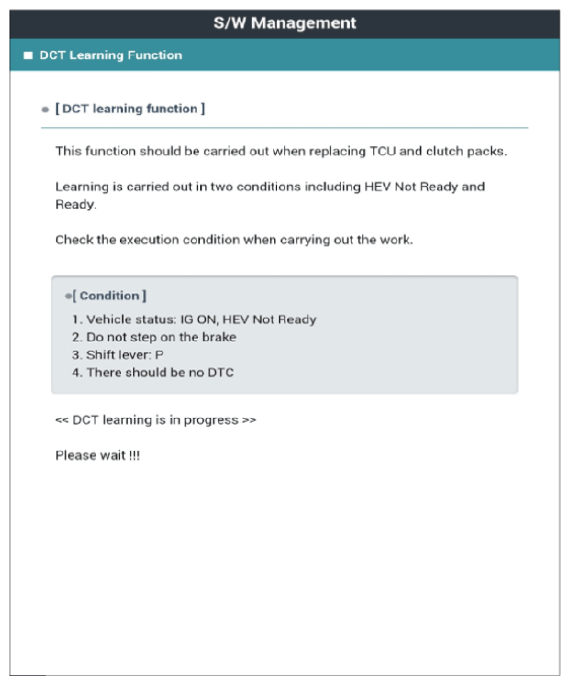

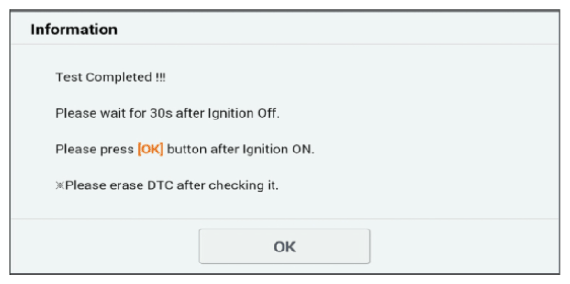

 Fig.1 to 6
CAUTION: In case of replacing TCM or Clutch pack perform following procedures.
G13360565Courtesy of KIA MOTORS AMERICA, INC.
G13360566Courtesy of KIA MOTORS AMERICA, INC.
G13360567Courtesy of KIA MOTORS AMERICA, INC.
G13360568Courtesy of KIA MOTORS AMERICA, INC.
G13360569Courtesy of KIA MOTORS AMERICA, INC.
G13360570Courtesy of KIA MOTORS AMERICA, INC.
