Repair Procedures: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

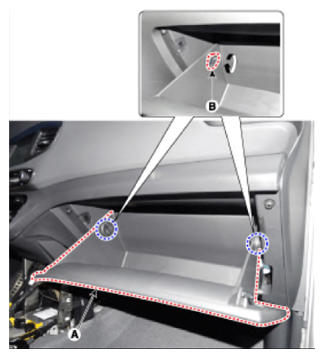

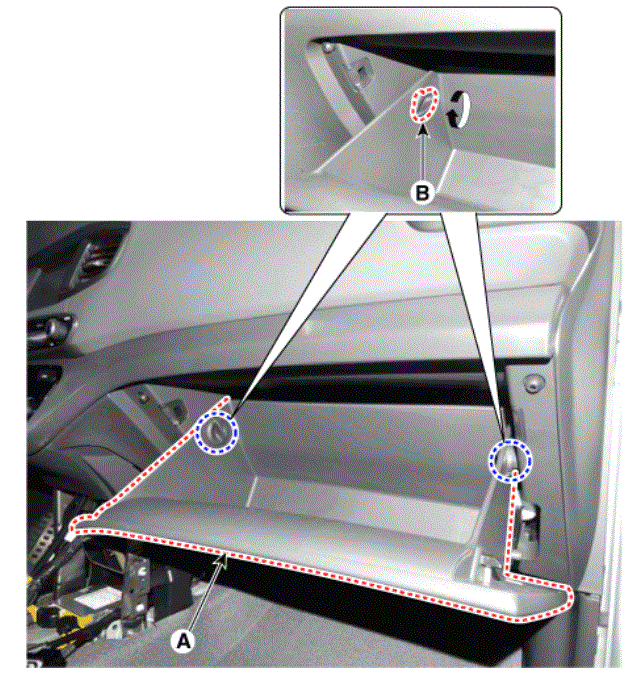

Remove both stoppers (B) from the glove box (A) by turning the stoppers.

Courtesy of HYUNDAI MOTOR AMERICA

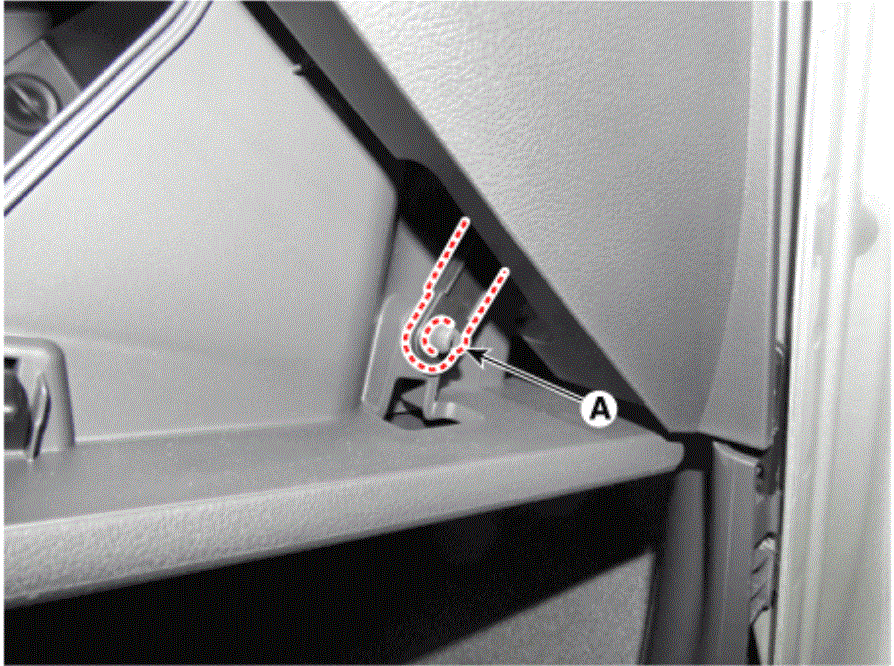

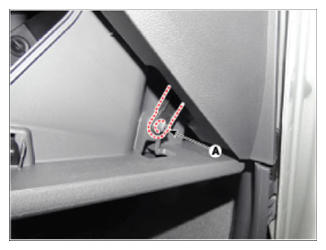

Separate the air damper from the glove box (A).

Courtesy of HYUNDAI MOTOR AMERICA

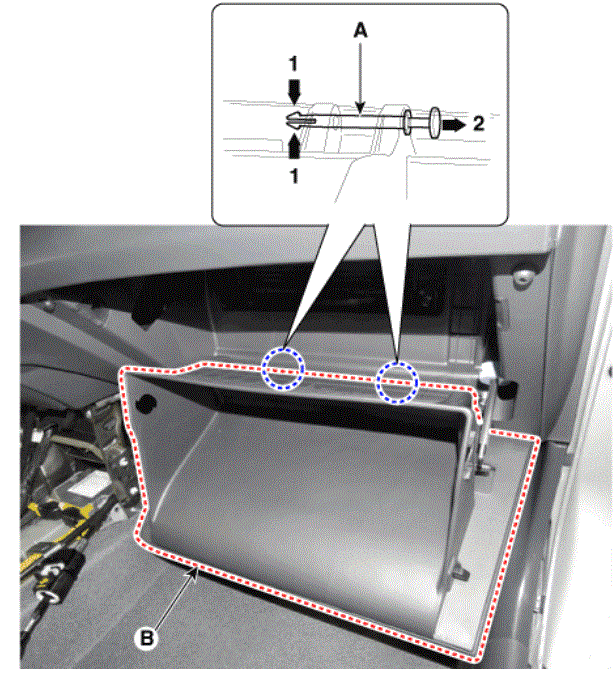

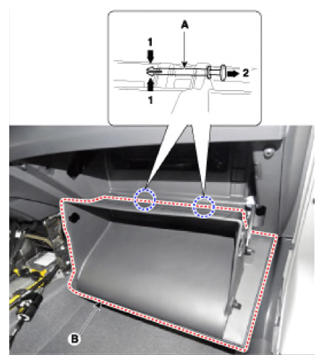

Disconnect the push pins (A) and then remove the glove box (B).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
