Repair Procedures: Replacement

CAUTION:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the glove box.

    (Refer to Crash Pad - "GLOVE BOX ")

  2. Remove the crash pad side cover [RH].

    (Refer to Crash Pad - "CRASH PAD SIDE COVER ")

  3. Remove the crash pad lower panel.

    (Refer to Crash Pad - "CRASH PAD LOWER PANEL ")

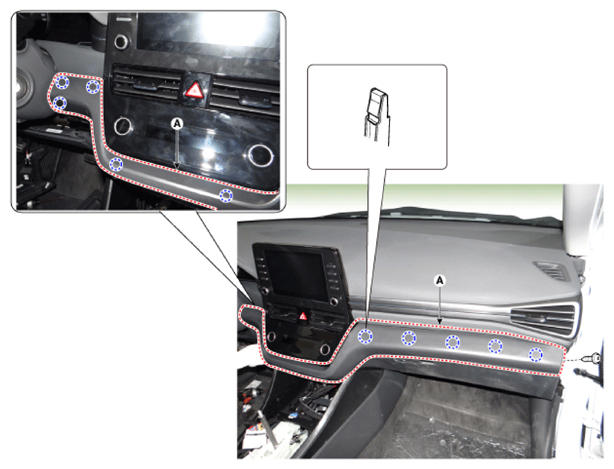

  4. Loosen the mounting screw and remove the crash pad center garnish (A).
    G13564368Courtesy of HYUNDAI MOTOR AMERICA
  5. Press the lock pin and separate the in-car sensor connector (A).
    G13564369Courtesy of HYUNDAI MOTOR AMERICA
  6. Loosen the mounting screws, nuts and remove the glove box upper cover assembly (A).
    G13564370Courtesy of HYUNDAI MOTOR AMERICA
  7. To install, reverse the removal procedure.

    Information

    • Make sure the connector is connected properly.
    • Replace any damaged clips (or pin-type retainers).
