Removal And Installation
- Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.

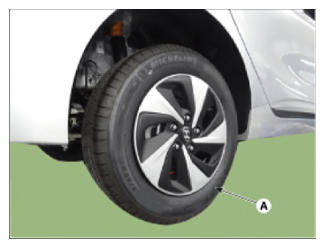

- Remove the rear wheel and tire (A) from the rear hub.
Tightening torque:
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)
NOTE:- Be careful not to damage the hub bolts when removing the rear wheel and tire (A).

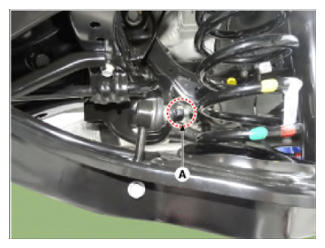

- Loosen the nut and then remove the rear stabilizer link (A).
Tightening torque:
58.8 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.9 lb-ft)

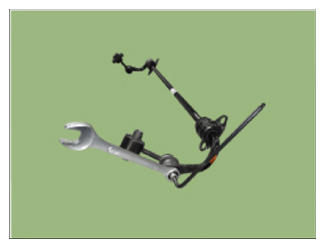

NOTE:- When loosening the nut (A), fix the outer hexagon of stabilizer bar link.

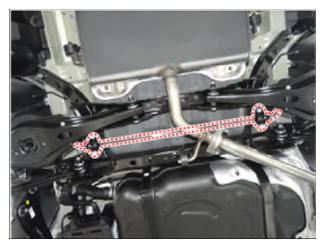

- Loosen the mounting bolt and then remove the stabilizer bar from the rear cross member.
Tightening torque:
44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 lb-ft)
- Remove the stabilizer link from the rear lower arm.
Tightening torque:
19.6 - 29.4 N.m (2.0 - 3.0 Kgf.m, 14.5 - 21.7 lb-ft)

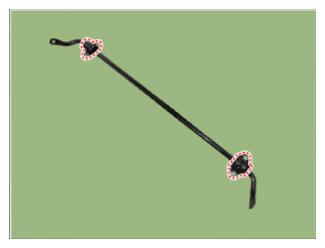

- Remove the bushing.
- Install in the reverse order of removal.
