Repair Procedures: Reassembly

To reassembly, reverse the disassembly procedure.

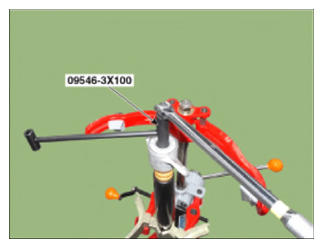

Using SST (09546-3X100), install the lock nut.
Tightening torque:

19.6 - 24.5 N.m (2.0 - 2.5 kgf.m, 14.5 - 18.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Do not reuse the self locking nut.

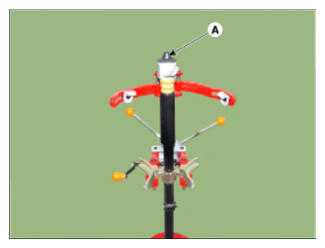

Install the lock nut cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
