Removal And Installation

Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.

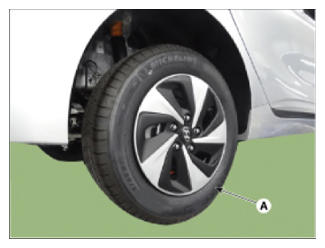

Remove the rear wheel and tire (A) from the rear hub.
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Be careful not to damage the hub bolts when removing the rear wheel and tire (A).

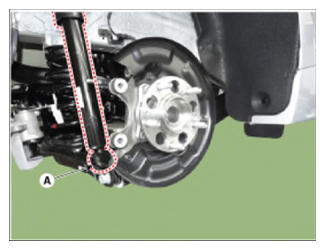

Loosen the bolt & nut and then remove the rear shock absorber (A) from the rear lower arm.
Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

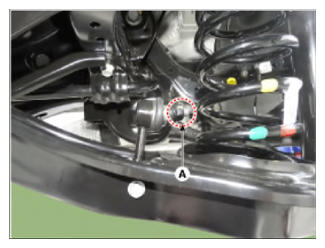

Loosen the nut and then remove the rear stabilizer link (A).
Tightening torque:

58.8 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.9 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When loosening the nut (A), fix the outer hexagon of stabilizer bar link.
Courtesy of HYUNDAI MOTOR AMERICA

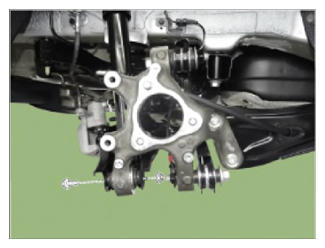

Loosen the bolt & nut and then remove the rear lower arm from the rear axle.
Tightening torque:

137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:

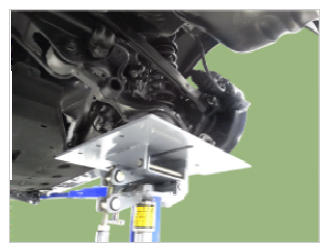

- Set up the transmission jack under the lower arm in order to remove it in no-load condition.
Courtesy of HYUNDAI MOTOR AMERICA

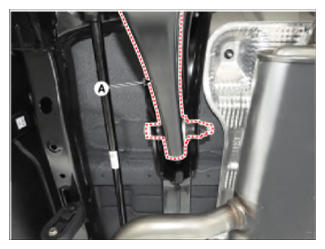

Loosen the bolt & nut and then remove the rear lower arm (A) from the rear cross member.
Tightening torque:

107.9 - 117.7 N.m (11.0 - 12.0 Kgf.m, 79.6 - 86.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

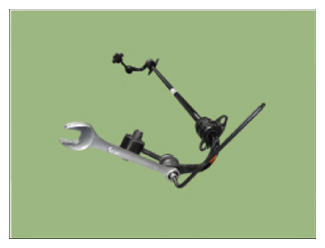

Remove the stabilizer link from the rear lower arm.
Tightening torque:

19.6 - 29.4 N.m (2.0 - 3.0 Kgf.m, 14.5 - 21.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Check the alignment.
(Refer to Tires/Wheels - "ALIGNMENT ")
