Rear Seat Belt Pretensioner

  1. Disconnect the battery negative cable and wait for at least 3 minutes before beginning work.
    NOTE:
    • When installing the belt, make sure not to damage the pretensioner.
  2. Remove the rear pillar trim.

    (Refer to Body - "REAR PILLAR TRIM ")

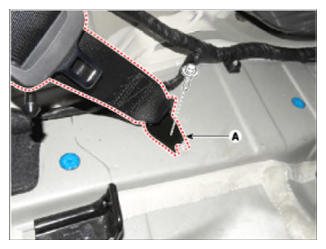

  3. Remove the rear seat belt lower anchor bolt (A).
    G13850446Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the pretensioner connector.
  5. Remove the rear seat belt pretensioner (A) after loosening mounting bolts.
    G13850447Courtesy of HYUNDAI MOTOR AMERICA
