Front Seat Belt Pretensioner

  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.

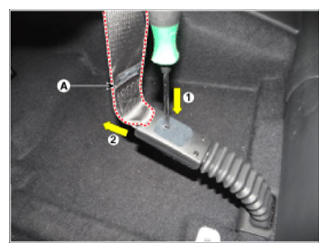

  2. Separate the front seat belt (A) from the emergency fastening device.
    G13850442Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the door scuff trim.

    (Refer to Body - "Door Scuff Trim ")

  4. Remove the center pillar trim.

    (Refer to Body - "Center Pillar Trim ")

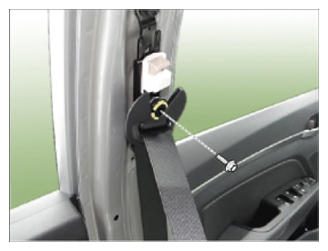

  5. Remove the front seat belt upper anchor bolt.
    G13850443Courtesy of HYUNDAI MOTOR AMERICA

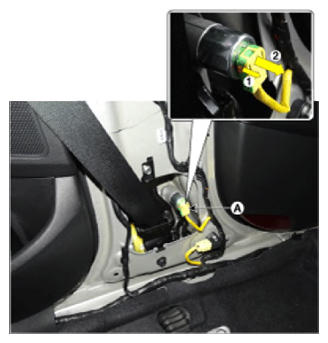

  6. Disconnect the front seat belt pretensioner connector (A).
    G13850444Courtesy of HYUNDAI MOTOR AMERICA

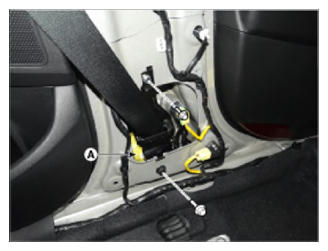

  7. Remove the seat belt pretensioner (A) after loosening the seat belt pretensioner mounting bolts.
    G13850445Courtesy of HYUNDAI MOTOR AMERICA
