Home >> Hyundai >> 2021 >> Ioniq Hybrid SEL >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag System Diagnosis (HEV) (2 Of 2) >> DTC B1493-00: Occupant Classification System (OCS) Communication Error >> Wiring Inspection >> Body Sensor Reset

Body Sensor Reset

  1. Ignition "OFF", connect GDS.

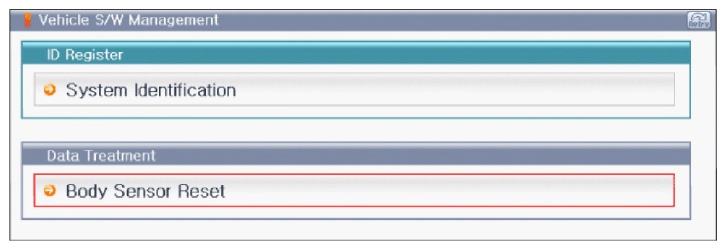

  2. Ignition "ON"& Engine "OFF", select "Vehicle Software Management" mode and select "Body sensor Reset".
  3. And then press "ENTER"
    G13839389Courtesy of HYUNDAI MOTOR AMERICA
