Monitor GDS Data
- Ignition switch "OFF", connect GDS.

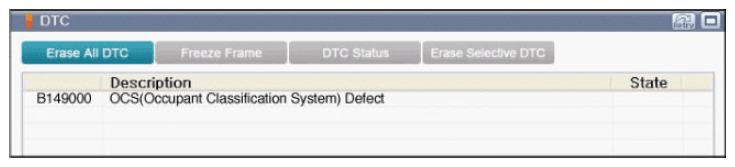

- Ignition switch "ON" and the engine OFF, select "Diagnostic Trouble Codes (DTC)" mode.
- Monitor diagnostic trouble code and present of trouble code.
- Using a GDS, clear the DTC.
- Is DTC present problem?
YES
- Check if there is DTC related "B111117 Ignition Voltage High" or "B111216 Ignition Voltage Low" or "B176300 OCS ECU defect" or "B176400 OCS Mat defect" or "B17672F OCS Algo cut-off" for Occupant Classification System (OCS) if so, refer to DTC procedures of Occupant Classification System (OCS) - "DTC INDEX " and repair or change appropriate part and then perform "VERIFICATION OF VEHICLE REPAIR ".
NO
- Go to "WIRING INSPECTION " procedure.
- Displaying nothing (no DTC) or DTC with label "H"(historical) shows that Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
